IXYX120N120C3
IXYX120N120C3

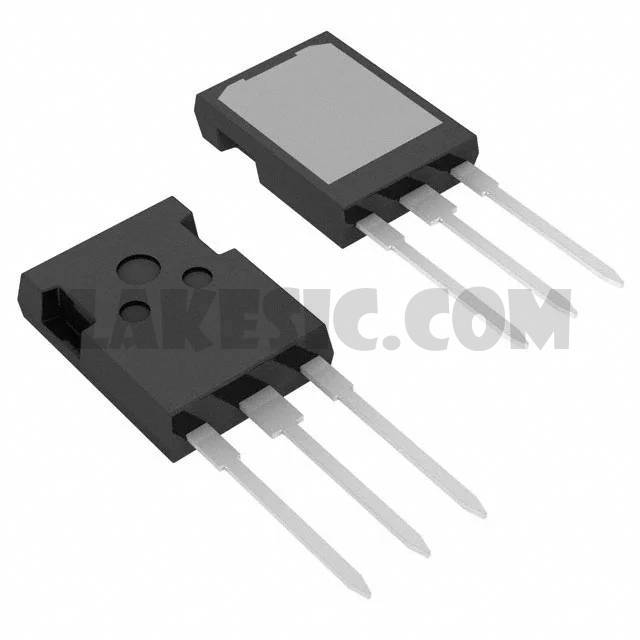

Part Number IXYX120N120C3 Manufacturer IXYS Description IGBT 1200V 240A 1500W PLUS247 Package / Case TO-247-3Unit Price Request a QuoteLead Time To be ConfirmedDetailed Description IGBT 1200V 240A 1500W Through Hole PLUS247™-3
To learn about the specification of IXYX120N120C3, please search the datasheet by clicking the link above. If you couldn't find the correct datasheet, please refer to the manufacturer's official datasheet.
To process your RFQ, please add IXYX120N120C3 with quantity into BOM. Icapacitors.com does NOT require any registration to request a quote of IXYX120N120C3.
We are offering IXYX120N120C3 for competitive price in the global market, please send us a quota request for pricing. Thank you!
Payment Methods
Delivery Services
IXYX120N120C3 - Product Attributes
Categories
Discrete Semiconductor Products / Transistors - IGBTs - Single
Datasheet IXYx120N120C3 Standard Package 30 Manufacturer IXYS Series GenX3™, XPT™ Packaging Tube Part Status Active IGBT Type - Voltage - Collector Emitter Breakdown (Max) 1200V Current - Collector (Ic) (Max) 240A Current - Collector Pulsed (Icm) 700A Vce(on) (Max) @ Vge, Ic 3.2V @ 15V, 120A Power - Max 1500W Switching Energy 6.75mJ (on), 5.1mJ (off) Input Type Standard Gate Charge 412nC Td (on/off) @ 25°C 35ns/176ns Test Condition 600V, 100A, 1Ohm, 15V Operating Temperature -55°C ~ 175°C (TJ) Mounting Type Through Hole Package / Case TO-247-3 Supplier Device Package PLUS247™-3
