Categories	Discrete Semiconductor Products / Transistors - IGBTs - Single
Datasheet	STGP20M65DF2
Standard Package	1000
Manufacturer	STMicroelectronics
Series	M
Part Status	Active
IGBT Type	Trench Field Stop
Voltage - Collector Emitter Breakdown (Max)	650V
Current - Collector (Ic) (Max)	40A
Current - Collector Pulsed (Icm)	80A
Vce(on) (Max) @ Vge, Ic	2V @ 15V, 20A
Power - Max	166W
Switching Energy	140µJ (on), 560µJ (off)
Input Type	Standard
Gate Charge	63nC
Td (on/off) @ 25°C	26ns/108ns
Test Condition	400V, 20A, 12Ohm, 15V
Reverse Recovery Time (trr)	166ns
Operating Temperature	-55°C ~ 175°C (TJ)
Mounting Type	Through Hole

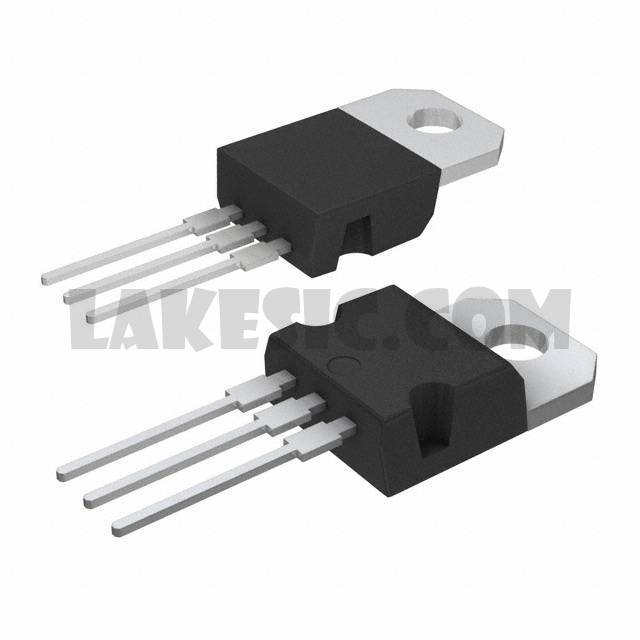

Package / Case	TO-220-3
Supplier Device Package	TO-220
