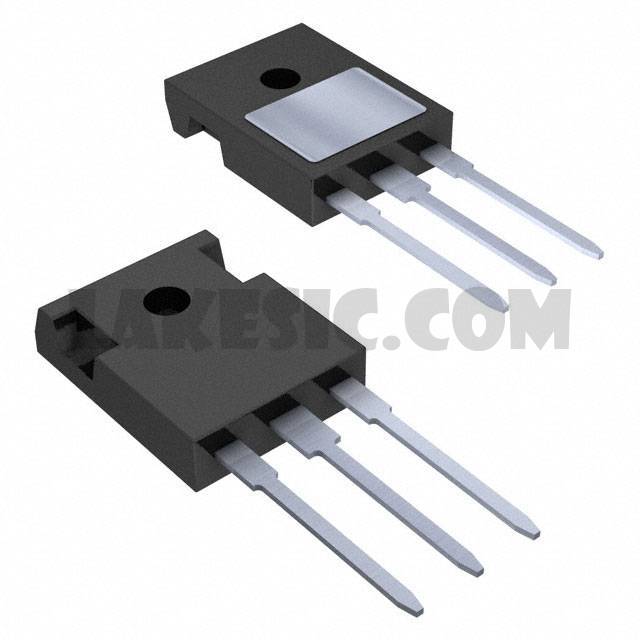

IXYJ20N120C3D1

IXYJ20N120C3D1

Part NumberIXYJ20N120C3D1

ManufacturerIXYS

DescriptionIGBT 1200V 21A 105W TO247

DatasheetIXYJ20N120C3D1 ~

Package / CaseTO-247-3

Unit PriceRequest a Quote

Lead TimeTo be Confirmed

Detailed DescriptionIGBT 1200V 21A 105W Through Hole ISO247™

To learn about the specification of IXYJ20N120C3D1, please search the datasheet by clicking the link above. If you couldn't find the correct datasheet, please refer to the manufacturer's official datasheet.
To process your RFQ, please add IXYJ20N120C3D1 with quantity into BOM. Icapacitors.com does NOT require any registration to request a quote of IXYJ20N120C3D1.
We are offering IXYJ20N120C3D1 for competitive price in the global market, please send us a quota request for pricing. Thank you!

Payment Methods
Delivery Services

IXYJ20N120C3D1 - Product Attributes

Categories	Discrete Semiconductor Products / Transistors - IGBTs - Single
Datasheet	IXYJ20N120C3D1 ~
Standard Package	30
Manufacturer	IXYS
Series	GenX3™, XPT™
Packaging	Tube
Part Status	Active
IGBT Type	-
Voltage - Collector Emitter Breakdown (Max)	1200V
Current - Collector (Ic) (Max)	21A
Current - Collector Pulsed (Icm)	84A
Vce(on) (Max) @ Vge, Ic	3.4V @ 15V, 20A
Power - Max	105W
Switching Energy	1.3mJ (on), 500µJ (off)
Input Type	Standard
Gate Charge	53nC
Td (on/off) @ 25°C	20ns/90ns
Test Condition	600V, 20A, 10Ohm, 15V
Reverse Recovery Time (trr)	195ns
Operating Temperature	-55°C ~ 150°C (TJ)
Mounting Type	Through Hole
Package / Case	TO-247-3
Supplier Device Package	ISO247™
Base Part Number	IXY*20N120
