IXBF50N360
IXBF50N360

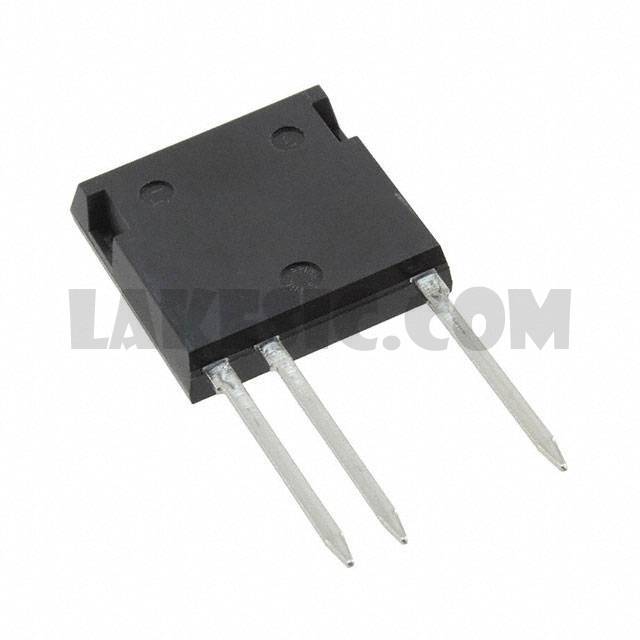

Part Number IXBF50N360 Manufacturer IXYS Description IGBT 3600V 70A 290W I4-PAK Package / Case i4-Pac™-5 (3 Leads)Unit Price Request a QuoteLead Time To be ConfirmedDetailed Description IGBT 3600V 70A 290W Through Hole ISOPLUS i4-PAC™
To learn about the specification of IXBF50N360, please search the datasheet by clicking the link above. If you couldn't find the correct datasheet, please refer to the manufacturer's official datasheet.
To process your RFQ, please add IXBF50N360 with quantity into BOM. Icapacitors.com does NOT require any registration to request a quote of IXBF50N360.
We are offering IXBF50N360 for competitive price in the global market, please send us a quota request for pricing. Thank you!
Payment Methods
Delivery Services
IXBF50N360 - Product Attributes
Categories
Discrete Semiconductor Products / Transistors - IGBTs - Single
Datasheet IXBF50N360 Standard Package 25 Manufacturer IXYS Series BIMOSFET™ Packaging Tube Part Status Active IGBT Type - Voltage - Collector Emitter Breakdown (Max) 3600V Current - Collector (Ic) (Max) 70A Current - Collector Pulsed (Icm) 420A Vce(on) (Max) @ Vge, Ic 2.9V @ 15V, 50A Power - Max 290W Switching Energy - Input Type Standard Gate Charge 210nC Td (on/off) @ 25°C 46ns/205ns Test Condition 960V, 50A, 5Ohm, 15V Reverse Recovery Time (trr) 1.7µs Operating Temperature -55°C ~ 150°C (TJ) Mounting Type Through Hole Package / Case i4-Pac™-5 (3 Leads) Supplier Device Package ISOPLUS i4-PAC™
