STGFW40H65FB
STGFW40H65FB

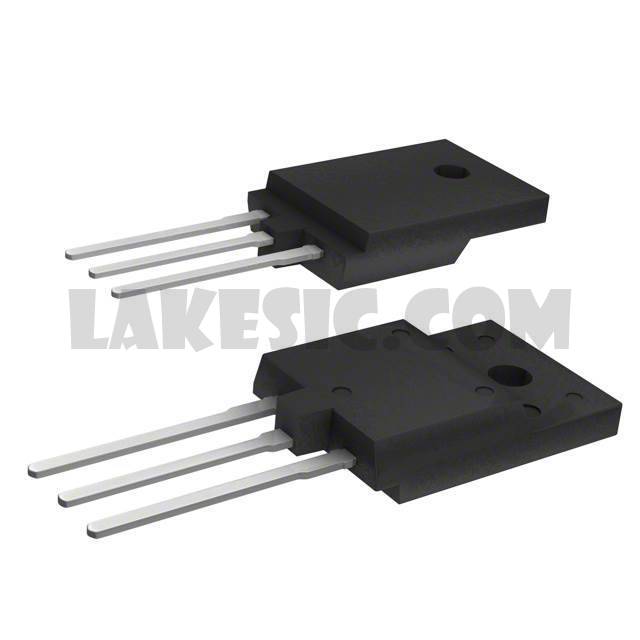

Part Number STGFW40H65FB Description IGBT HB 650V 40A ISOWATT218 Package / Case TO-3P-3 Full PackUnit Price Request a QuoteLead Time To be ConfirmedDetailed Description IGBT Trench Field Stop 650V 80A 62.5W Through Hole TO-3PF-3
To learn about the specification of STGFW40H65FB, please search the datasheet by clicking the link above. If you couldn't find the correct datasheet, please refer to the manufacturer's official datasheet.
To process your RFQ, please add STGFW40H65FB with quantity into BOM. Icapacitors.com does NOT require any registration to request a quote of STGFW40H65FB.
We are offering STGFW40H65FB for competitive price in the global market, please send us a quota request for pricing. Thank you!
Payment Methods
Delivery Services
STGFW40H65FB - Product Attributes
Categories
Discrete Semiconductor Products / Transistors - IGBTs - Single
Datasheet STGW(T)40H65FB Standard Package 30 Manufacturer STMicroelectronics Series - Packaging Tube Part Status Active IGBT Type Trench Field Stop Voltage - Collector Emitter Breakdown (Max) 650V Current - Collector (Ic) (Max) 80A Current - Collector Pulsed (Icm) 160A Vce(on) (Max) @ Vge, Ic 2V @ 15V, 40A Power - Max 62.5W Switching Energy 498µJ (on), 363µJ (off) Input Type Standard Gate Charge 210nC Td (on/off) @ 25°C 40ns/142ns Test Condition 400V, 40A, 5Ohm, 15V Operating Temperature -55°C ~ 175°C (TJ) Mounting Type Through Hole Package / Case TO-3P-3 Full Pack Supplier Device Package TO-3PF-3
