IKA15N65F5XKSA1
IKA15N65F5XKSA1

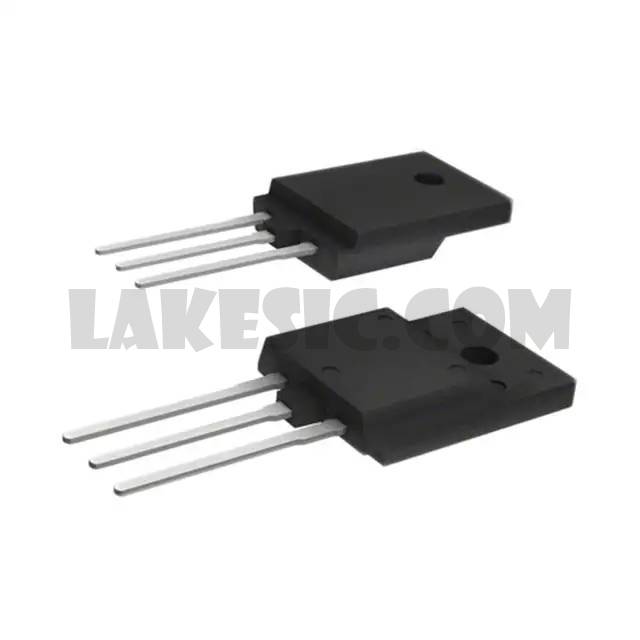

Part Number IKA15N65F5XKSA1 Description IGBT 650V 14A 33.3W PG-TO220-3FP Package / Case TO-220-3 Full PackUnit Price Request a QuoteLead Time To be ConfirmedDetailed Description IGBT 650V 14A 33.3W Through Hole PG-TO220-FP
To learn about the specification of IKA15N65F5XKSA1, please search the datasheet by clicking the link above. If you couldn't find the correct datasheet, please refer to the manufacturer's official datasheet.
To process your RFQ, please add IKA15N65F5XKSA1 with quantity into BOM. Icapacitors.com does NOT require any registration to request a quote of IKA15N65F5XKSA1.
We are offering IKA15N65F5XKSA1 for competitive price in the global market, please send us a quota request for pricing. Thank you!
Payment Methods
Delivery Services
IKA15N65F5XKSA1 - Product Attributes
Categories
Discrete Semiconductor Products / Transistors - IGBTs - Single
Datasheet IKA15N65F5 Standard Package 500 Manufacturer Infineon Technologies Series TrenchStop® Packaging Tube Part Status Active IGBT Type - Voltage - Collector Emitter Breakdown (Max) 650V Current - Collector (Ic) (Max) 14A Current - Collector Pulsed (Icm) 45A Vce(on) (Max) @ Vge, Ic 2.1V @ 15V, 15A Power - Max 33.3W Switching Energy 130µJ (on), 40µJ (off) Input Type Standard Gate Charge 38nC Td (on/off) @ 25°C 17ns/150ns Test Condition 400V, 7.5A, 39Ohm, 15V Reverse Recovery Time (trr) 50ns Operating Temperature -40°C ~ 175°C (TJ) Mounting Type Through Hole Package / Case TO-220-3 Full Pack Supplier Device Package PG-TO220-FP
