FGH40T120SMD-F155
FGH40T120SMD-F155

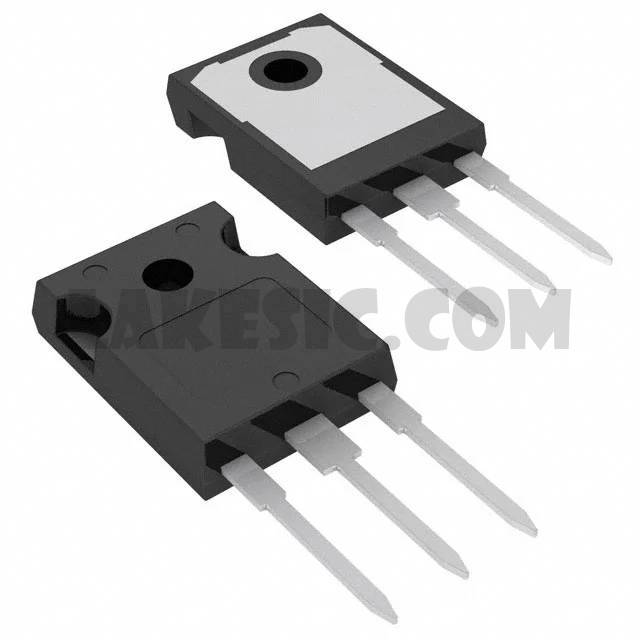

Part Number FGH40T120SMD-F155
Description IGBT 1200V 80A 555W TO247-3
Package / Case TO-247-3
Unit Price Request a Quote
Lead Time To be Confirmed
Detailed Description IGBT Trench Field Stop 1200V 80A 555W Through Hole TO-247-3
To learn about the specification of FGH40T120SMD-F155, please search the datasheet by clicking the link above. If you couldn't find the correct datasheet, please refer to the manufacturer's official datasheet.
To process your RFQ, please add FGH40T120SMD-F155 with quantity into BOM. Icapacitors.com does NOT require any registration to request a quote of FGH40T120SMD-F155.
We are offering FGH40T120SMD-F155 for competitive price in the global market, please send us a quota request for pricing. Thank you!
Payment Methods
Delivery Services
FGH40T120SMD-F155 - Product Attributes
Categories
Discrete Semiconductor Products / Transistors - IGBTs - Single
Datasheet FGH40T120SMD(F155)
Standard Package 450
Manufacturer ON Semiconductor
Series -
Packaging Tube
Part Status Active
IGBT Type Trench Field Stop
Voltage - Collector Emitter Breakdown (Max) 1200V
Current - Collector (Ic) (Max) 80A
Current - Collector Pulsed (Icm) 160A
Vce(on) (Max) @ Vge, Ic 2.4V @ 15V, 40A
Power - Max 555W
Switching Energy 2.7mJ (on), 1.1mJ (off)
Input Type Standard
Gate Charge 370nC
Td (on/off) @ 25°C 40ns/475ns
Test Condition 600V, 40A, 10Ohm, 15V
Reverse Recovery Time (trr) 65ns
Operating Temperature -55°C ~ 175°C (TJ)
Mounting Type Through Hole
Package / Case TO-247-3
Supplier Device Package TO-247-3
