AOK40B60D1
AOK40B60D1

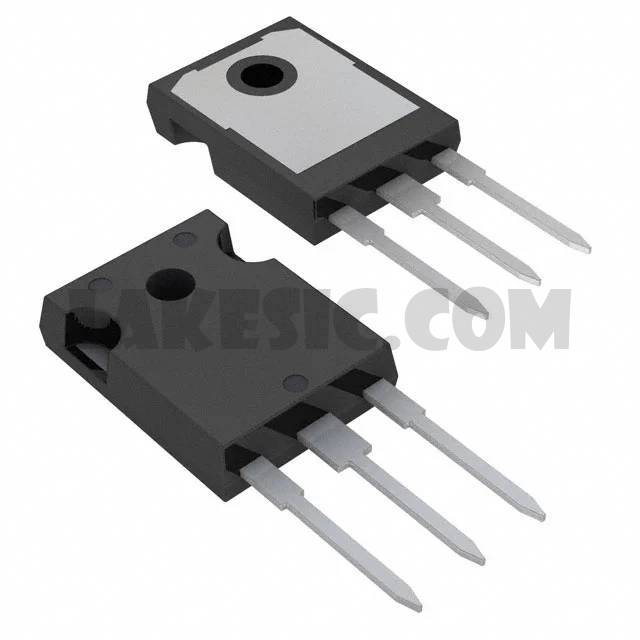

Part Number AOK40B60D1 Description IGBT 600V 80A 278W TO247 Package / Case TO-247-3Unit Price Request a QuoteLead Time To be ConfirmedDetailed Description IGBT 600V 80A 278W Through Hole TO-247
To learn about the specification of AOK40B60D1, please search the datasheet by clicking the link above. If you couldn't find the correct datasheet, please refer to the manufacturer's official datasheet.
To process your RFQ, please add AOK40B60D1 with quantity into BOM. Icapacitors.com does NOT require any registration to request a quote of AOK40B60D1.
We are offering AOK40B60D1 for competitive price in the global market, please send us a quota request for pricing. Thank you!
Payment Methods
Delivery Services
AOK40B60D1 - Product Attributes
Categories
Discrete Semiconductor Products / Transistors - IGBTs - Single
Datasheet AOK40B60D1 Standard Package 240 Manufacturer Alpha & Omega Semiconductor Inc. Series Alpha IGBT™ Packaging Tube Part Status Active IGBT Type - Voltage - Collector Emitter Breakdown (Max) 600V Current - Collector (Ic) (Max) 80A Current - Collector Pulsed (Icm) 140A Vce(on) (Max) @ Vge, Ic 2.4V @ 15V, 40A Power - Max 278W Switching Energy 1.55mJ (on), 300µJ (off) Input Type Standard Gate Charge 45nC Td (on/off) @ 25°C 29ns/74ns Test Condition 400V, 40A, 7.5Ohm, 15V Reverse Recovery Time (trr) 127ns Operating Temperature -55°C ~ 150°C (TJ) Mounting Type Through Hole Package / Case TO-247-3 Supplier Device Package TO-247
