APT75GN120LG
APT75GN120LG

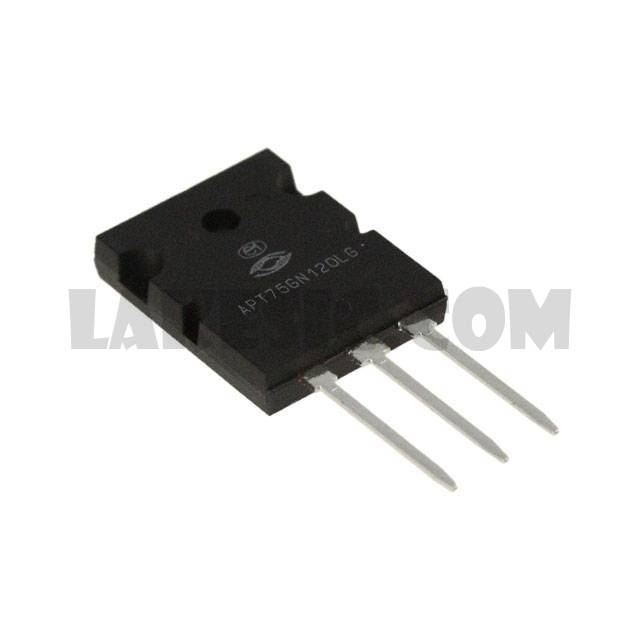

Part Number APT75GN120LG Description IGBT 1200V 200A 833W TO264 Package / Case TO-264-3, TO-264AAUnit Price Request a QuoteLead Time To be ConfirmedDetailed Description IGBT Trench Field Stop 1200V 200A 833W Through Hole TO-264 [L]
To learn about the specification of APT75GN120LG, please search the datasheet by clicking the link above. If you couldn't find the correct datasheet, please refer to the manufacturer's official datasheet.
To process your RFQ, please add APT75GN120LG with quantity into BOM. Icapacitors.com does NOT require any registration to request a quote of APT75GN120LG.
We are offering APT75GN120LG for competitive price in the global market, please send us a quota request for pricing. Thank you!
Payment Methods
Delivery Services
APT75GN120LG - Product Attributes
Categories
Discrete Semiconductor Products / Transistors - IGBTs - Single
Datasheet APT75GN120(B2,L)(G) Standard Package 1 Manufacturer Microsemi Corporation Series - Packaging Tube Part Status Active IGBT Type Trench Field Stop Voltage - Collector Emitter Breakdown (Max) 1200V Current - Collector (Ic) (Max) 200A Current - Collector Pulsed (Icm) 225A Vce(on) (Max) @ Vge, Ic 2.1V @ 15V, 75A Power - Max 833W Switching Energy 8620µJ (on), 11400µJ (off) Input Type Standard Gate Charge 425nC Td (on/off) @ 25°C 60ns/620ns Test Condition 800V, 75A, 1Ohm, 15V Operating Temperature -55°C ~ 150°C (TJ) Mounting Type Through Hole Package / Case TO-264-3, TO-264AA Supplier Device Package TO-264 [L]
