STGWA40H65FB
STGWA40H65FB

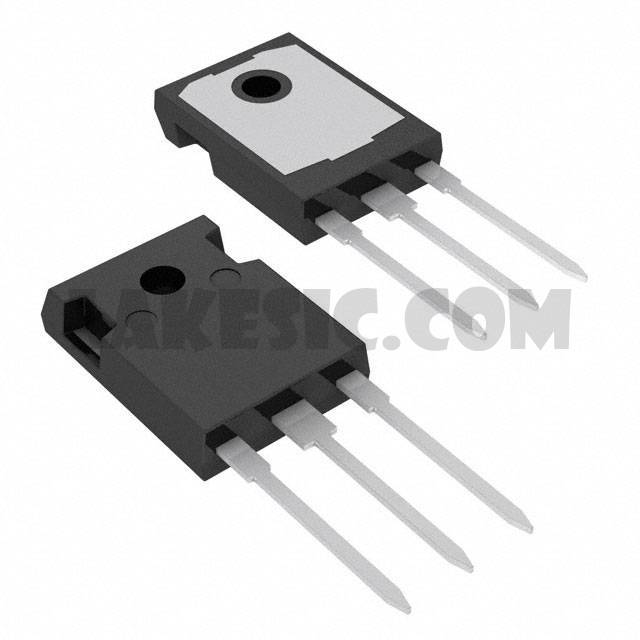

Part Number STGWA40H65FB Description IGBT Package / Case TO-247-3Unit Price Request a QuoteLead Time To be ConfirmedDetailed Description IGBT Trench Field Stop 650V 80A 283W Through Hole TO-247 Long Leads
To learn about the specification of STGWA40H65FB, please search the datasheet by clicking the link above. If you couldn't find the correct datasheet, please refer to the manufacturer's official datasheet.
To process your RFQ, please add STGWA40H65FB with quantity into BOM. Icapacitors.com does NOT require any registration to request a quote of STGWA40H65FB.
We are offering STGWA40H65FB for competitive price in the global market, please send us a quota request for pricing. Thank you!
Payment Methods
Delivery Services
STGWA40H65FB - Product Attributes
Categories
Discrete Semiconductor Products / Transistors - IGBTs - Single
Datasheet STGW(T)40H65FB Standard Package 30 Manufacturer STMicroelectronics Series HB Part Status Active IGBT Type Trench Field Stop Voltage - Collector Emitter Breakdown (Max) 650V Current - Collector (Ic) (Max) 80A Current - Collector Pulsed (Icm) 160A Vce(on) (Max) @ Vge, Ic 2V @ 15V, 40A Power - Max 283W Switching Energy 498µJ (on), 363µJ (off) Input Type Standard Gate Charge 210nC Td (on/off) @ 25°C 40ns/142ns Test Condition 400V, 40A, 5Ohm, 15V Operating Temperature -55°C ~ 175°C (TJ) Mounting Type Through Hole Package / Case TO-247-3 Supplier Device Package TO-247 Long Leads
