Categories	Discrete Semiconductor Products / Transistors - IGBTs - Single
Datasheet	RGPR30NS40HR Datasheet
Standard Package	1000
Manufacturer	Rohm Semiconductor
Series	Automotive, AEC-Q101
Packaging	Tape & Reel (TR)
Part Status	Active
IGBT Type	-
Voltage - Collector Emitter Breakdown (Max)	430V
Current - Collector (Ic) (Max)	30A
Vce(on) (Max) @ Vge, Ic	2.0V @ 5V, 10A
Power - Max	125W
Switching Energy	-
Input Type	Standard
Gate Charge	22nC
Td (on/off) @ 25°C	500ns/4µs
Test Condition	300V, 8A, 100Ohm, 5V
Operating Temperature	-40°C ~ 175°C (TJ)
Mounting Type	Surface Mount

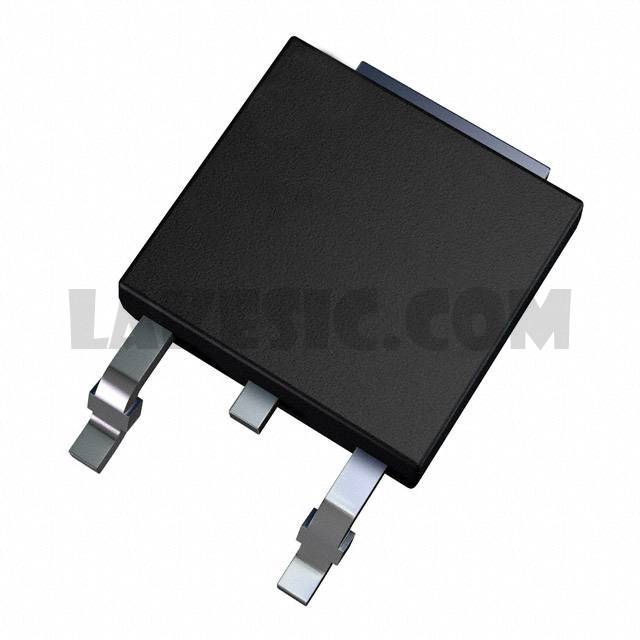

Package / Case	TO-263-3, D²Pak (2 Leads + Tab), TO-263AB
Supplier Device Package	LPDS
