Categories	Capacitors / Film Capacitors

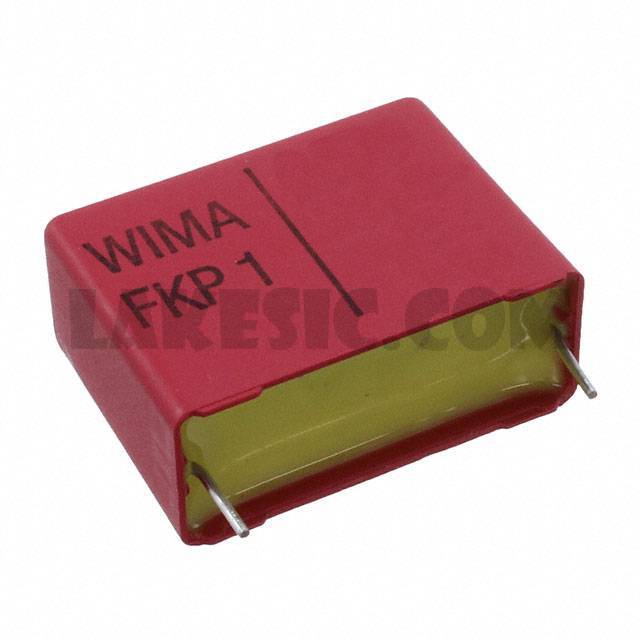

Datasheet	WIMA FKP 1
Standard Package	459
Manufacturer	WIMA
Series	-
Packaging	Bulk
Part Status	Active
Capacitance	10000pF
Tolerance	±20%
Voltage Rating - AC	700V
Voltage Rating - DC	2000V (2kV)
Dielectric Material	Polypropylene (PP), Metallized
Operating Temperature	-55°C ~ 100°C
Mounting Type	Through Hole
Package / Case	Radial
Size / Dimension	1.240" L x 0.433" W (31.50mm x 11.00mm)
Height - Seated (Max)	0.827" (21.00mm)
Termination	PC Pins
Lead Spacing	1.083" (27.50mm)
Applications	High Frequency, Switching; High Pulse, DV/DT
Ratings	-
Features	-

FKP1R021505F00KSSD	WIMA, 0.015µF Film Capacitor 600V 1250V (1.25kV) Polypropylene (PP), Metallized Radial,	View
FKP1R016804F00KSSD	WIMA, 6800pF Film Capacitor 600V 1250V (1.25kV) Polypropylene (PP), Metallized Radial,	View
FKP1U006804C00JSSD	WIMA, 680pF Film Capacitor 700V 2000V (2kV) Polypropylene (PP), Metallized Radial,	View
FKP1J024705H00JSSD	WIMA, 0.047µF Film Capacitor 400V 630V Polypropylene (PP), Metallized Radial,	View
FKP1Y011505D00MSSD	WIMA, 1500pF Film Capacitor 700V 6000V (6kV) Polypropylene (PP), Metallized Radial,	View
FKP1T011504D00KSSD	WIMA, 1500pF Film Capacitor 650V 1600V (1.6kV) Polypropylene (PP), Metallized Radial,	View
FKP1R013304C00JSSD	WIMA, 3300pF Film Capacitor 600V 1250V (1.25kV) Polypropylene (PP), Metallized Radial,	View
FKP1T004704B00MSSD	WIMA, 470pF Film Capacitor 650V 1600V (1.6kV) Polypropylene (PP), Metallized Radial,	View
FKP1G032206D00MSSD	WIMA, 0.22µF Film Capacitor 250V 400V Polypropylene (PP), Metallized Radial,	View
FKP1U001504B00JSSD	WIMA, 150pF Film Capacitor 700V 2000V (2kV) Polypropylene (PP), Metallized Radial,	View
FKP1Y012205H00JSSD	WIMA, 2200pF Film Capacitor 700V 6000V (6kV) Polypropylene (PP), Metallized Radial,	View
FKP1T021005H00MSSD	WIMA, 10000pF Film Capacitor 650V 1600V (1.6kV) Polypropylene (PP), Metallized Radial,	View

FKP1U021006B00MSC9

Part NumberFKP1U021006B00MSC9
