Categories	Capacitors / Film Capacitors

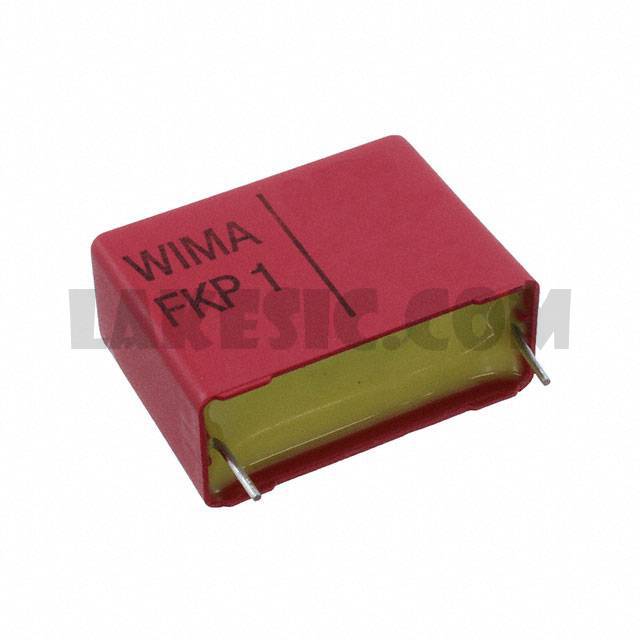

Datasheet	WIMA FKP 1
Standard Package	324
Manufacturer	WIMA
Series	-
Packaging	Bulk
Part Status	Active
Capacitance	10000pF
Tolerance	±5%
Voltage Rating - AC	700V
Voltage Rating - DC	6000V (6kV)
Dielectric Material	Polypropylene (PP), Metallized
Operating Temperature	-55°C ~ 100°C
Mounting Type	Through Hole
Package / Case	Radial
Size / Dimension	1.240" L x 0.591" W (31.50mm x 15.00mm)
Height - Seated (Max)	1.024" (26.00mm)
Termination	PC Pins
Lead Spacing	1.083" (27.50mm)
Applications	High Frequency, Switching; High Pulse, DV/DT
Ratings	-
Features	-

FKP1T012205A00MSSD	WIMA, 2200pF Film Capacitor 650V 1600V (1.6kV) Polypropylene (PP), Metallized Radial,	View
FKP1U002204B00MSSD	WIMA, 220pF Film Capacitor 700V 2000V (2kV) Polypropylene (PP), Metallized Radial,	View
FKP1J026806B00JSSD	WIMA, 0.068µF Film Capacitor 400V 630V Polypropylene (PP), Metallized Radial,	View
FKP1U006804C00JSSD	WIMA, 680pF Film Capacitor 700V 2000V (2kV) Polypropylene (PP), Metallized Radial,	View
FKP1U016805H00KSSD	WIMA, 6800pF Film Capacitor 700V 2000V (2kV) Polypropylene (PP), Metallized Radial,	View
FKP1X004705A00JSSD	WIMA, 470pF Film Capacitor 700V 4000V (4kV) Polypropylene (PP), Metallized Radial,	View
FKP1Y016806D00JSSD	WIMA, 6800pF Film Capacitor 700V 6000V (6kV) Polypropylene (PP), Metallized Radial,	View
FKP1T012204F00JSSD	WIMA, 2200pF Film Capacitor 650V 1600V (1.6kV) Polypropylene (PP), Metallized Radial,	View
FKP1T021005H00MSSD	WIMA, 10000pF Film Capacitor 650V 1600V (1.6kV) Polypropylene (PP), Metallized Radial,	View
FKP1G031006A00JSSD	WIMA, 0.1µF Film Capacitor 250V 400V Polypropylene (PP), Metallized Radial,	View
FKP1U013305D00KSSD	WIMA, 3300pF Film Capacitor 700V 2000V (2kV) Polypropylene (PP), Metallized Radial,	View
FKP1Y021006F00KSC9	WIMA, 10000pF Film Capacitor 700V 6000V (6kV) Polypropylene (PP), Metallized Radial,	View

FKP1Y021006F00JSSD

Part NumberFKP1Y021006F00JSSD
