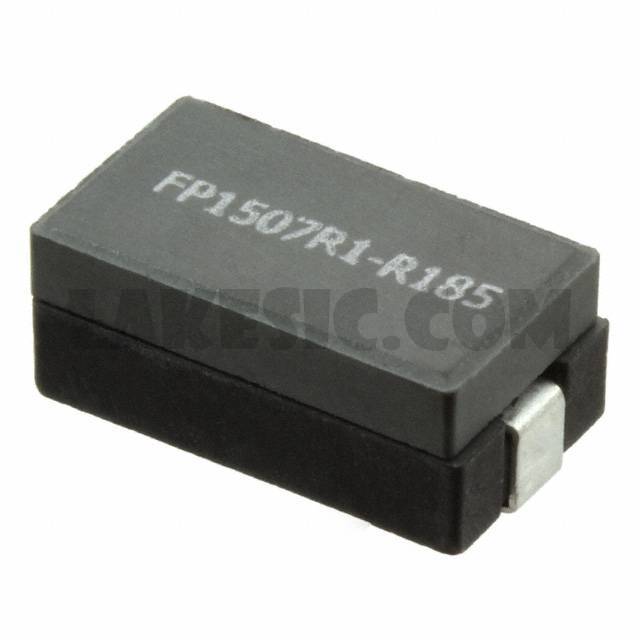

FP1507R1-R185-R

Part NumberFP1507R1-R185-R

ManufacturerEaton - Electronics Division

DescriptionFIXED IND 185NH 45A 0.52 MOHM

DatasheetFP1507R Series Datasheet

Package / CaseNonstandard

Unit PriceRequest a Quote

Lead TimeTo be Confirmed

Detailed Description185nH Shielded Wirewound Inductor 45A 0.52mOhm Nonstandard

To learn about the specification of FP1507R1-R185-R, please search the datasheet by clicking the link above. If you couldn't find the correct datasheet, please refer to the manufacturer's official datasheet.
To process your RFQ, please add FP1507R1-R185-R with quantity into BOM. Icapacitors.com does NOT require any registration to request a quote of FP1507R1-R185-R.
We are offering FP1507R1-R185-R for competitive price in the global market, please send us a quota request for pricing. Thank you!

Payment Methods
Delivery Services

FP1507R1-R185-R - Product Attributes

Categories	Inductors, Coils, Chokes / Fixed Inductors
Datasheet	FP1507R Series Datasheet
Standard Package	1
Manufacturer	Eaton - Electronics Division
Series	FP1507R
Packaging	Cut Tape (CT)
Part Status	Active
Type	Wirewound
Material - Core	Ferrite
Inductance	185nH
Tolerance	±10%
Current Rating (Amps)	45A
Current - Saturation	40A
Shielding	Shielded
DC Resistance (DCR)	0.52mOhm
Q @ Freq	-
Frequency - Self Resonant	-
Ratings	-
Operating Temperature	-55°C ~ 125°C
Inductance Frequency - Test	1MHz
Mounting Type	Surface Mount
Package / Case	Nonstandard
Supplier Device Package	2-SMD
Size / Dimension	0.575" L x 0.335" W (14.60mm x 8.50mm)
Height - Seated (Max)	0.264" (6.70mm)
