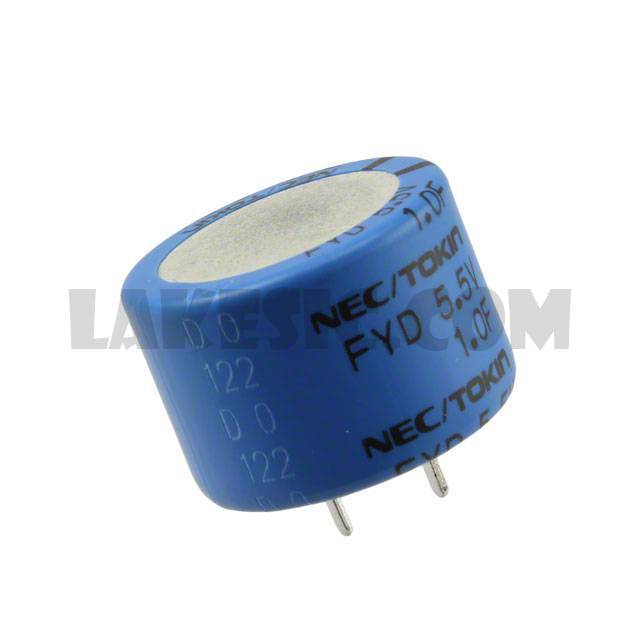

Categories	Capacitors / Electric Double Layer Capacitors (EDLC), Supercapacitors
Datasheet	FY Series Datasheet
Standard Package	90
Manufacturer	KEMET
Series	FYD
Packaging	Bulk
Part Status	Active
Capacitance	1F
Tolerance	-20%, +80%
Voltage - Rated	5.5V
ESR (Equivalent Series Resistance)	35Ohm @ 1kHz
Lifetime @ Temp.	-
Termination	PC Pins
Mounting Type	Through Hole
Package / Case	Radial, Can
Lead Spacing	0.300" (7.62mm)
Size / Dimension	0.846" Dia (21.50mm)
Height - Seated (Max)	0.630" (16.00mm)
Operating Temperature	-25°C ~ 70°C
