GHIS080A060S1-E1


GHIS080A060S1-E1

Part NumberGHIS080A060S1-E1

Manufacturer

Description

Datasheet

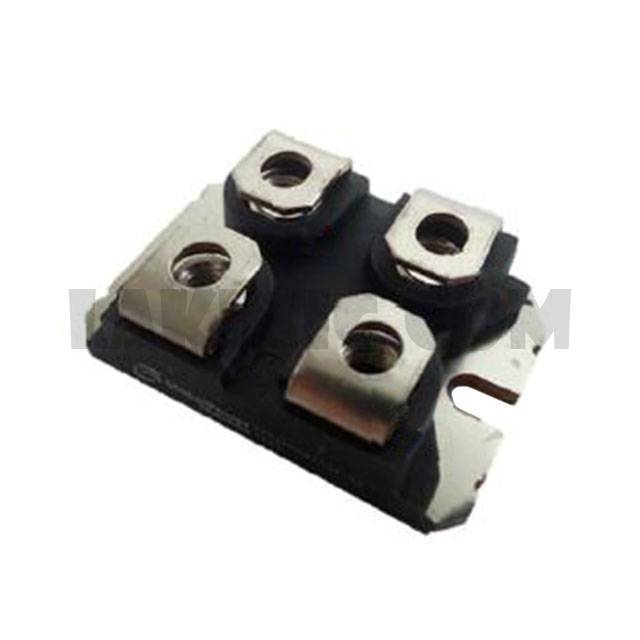

Package / CaseSOT-227-4, miniBLOC

Unit PriceRequest a Quote

Lead TimeTo be Confirmed

Detailed Description

GHIS080A060S1-E1 - Product Attributes

Categories Discrete Semiconductor Products / Transistors - IGBTs - Modules
Datasheet
Standard Package10
ManufacturerGlobal Power Technologies Group
Series-
Part StatusActive
IGBT TypeTrench Field Stop
ConfigurationSingle
Voltage - Collector Emitter Breakdown (Max)600V
Current - Collector (Ic) (Max)160A
Power - Max380W
Vce(on) (Max) @ Vge, Ic2.5V @ 15V, 80A
Current - Collector Cutoff (Max)2mA
Input Capacitance (Cies) @ Vce5.44nF @ 30V
InputStandard
NTC ThermistorNo
Operating Temperature-55°C ~ 150°C (TJ)
Mounting TypeChassis Mount
Package / CaseSOT-227-4, miniBLOC
Supplier Device PackageSOT-227

GHIS080A060S1-E1 - Related Products

More >>
GHIS080A060S1-E1 Global Power Technologies Group, IGBT Module Trench Field Stop Single 600V 160A 380W Chassis Mount SOT-227, View
