Categories	Capacitors / Trimmers, Variable Capacitors
Datasheet	GC,GSX,GX,GY,GZ Series Datasheet
Standard Package	100
Manufacturer	Sprague-Goodman
Series	FILMTRIM®
Packaging	Bulk
Part Status	Active
Capacitance Range	1.2 ~ 4pF
Adjustment Type	Top
Voltage - Rated	150V
Dielectric Material	Polytetrafluoroethylene (PTFE)
Q @ Freq	1500 @ 1MHz
Size / Dimension	0.217" L x 0.197" W (5.50mm x 5.00mm)
Height - Seated (Max)	0.197" (5.00mm)
Operating Temperature	-40°C ~ 125°C
Mounting Type	Through Hole
Features	General Purpose

GXL18000	Sprague-Goodman, 2.3 ~ 18pF Trimmer Capacitor 150V Top Through Hole, FILMTRIM®	View
EGXL250ELL471MJ20S	United Chemi-Con, 470µF 25V Aluminum Electrolytic Capacitors Radial, Can 5000 Hrs @ 125°C, GXL	View
GXL4R000	Sprague-Goodman, 1.2 ~ 4pF Trimmer Capacitor 150V Top Through Hole, FILMTRIM®	View
EGXL350ELL101MJC5S	United Chemi-Con, 100µF 35V Aluminum Electrolytic Capacitors Radial, Can 5000 Hrs @ 125°C, GXL	View
EGXL160ETD221MJC5S	United Chemi-Con, 220µF 16V Aluminum Electrolytic Capacitors Radial, Can 5000 Hrs @ 125°C, GXL	View
GXL15000	Sprague-Goodman, 2 ~ 15pF Trimmer Capacitor 150V Top Through Hole, FILMTRIM®	View
GXL3R000	Sprague-Goodman, Trimmer Capacitor 150V Top Through Hole, FILMTRIM®	View
EGXL250ELL221MJC5S	United Chemi-Con, 220µF 25V Aluminum Electrolytic Capacitors Radial, Can 5000 Hrs @ 125°C, GXL	View
EGXL350ETD331MJ20S	United Chemi-Con, 330µF 35V Aluminum Electrolytic Capacitors Radial, Can 5000 Hrs @ 125°C, GXL	View
GXL8R000	Sprague-Goodman, Trimmer Capacitor 150V Top Through Hole, FILMTRIM®	View
EGXL350ETD331MJ20S	United Chemi-Con, 330µF 35V Aluminum Electrolytic Capacitors Radial, Can 5000 Hrs @ 125°C, GXL	View
EGXL250ELL331MJ16S	United Chemi-Con, 330µF 25V Aluminum Electrolytic Capacitors Radial, Can 5000 Hrs @ 125°C, GXL	View

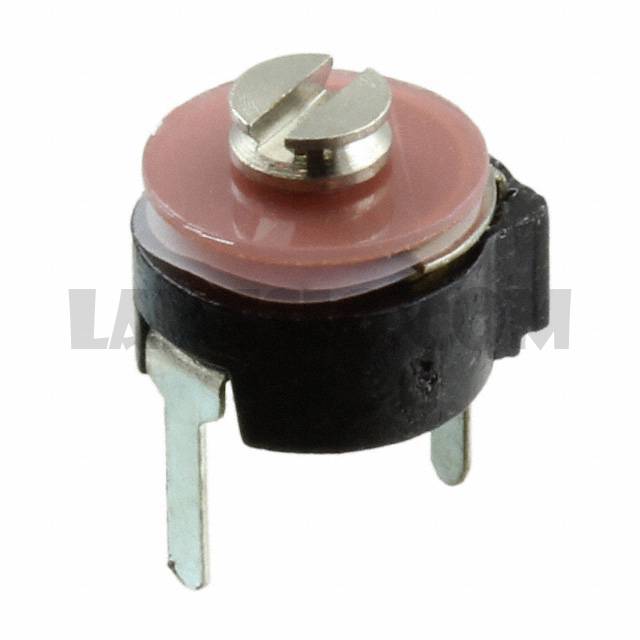

GXL4R000
