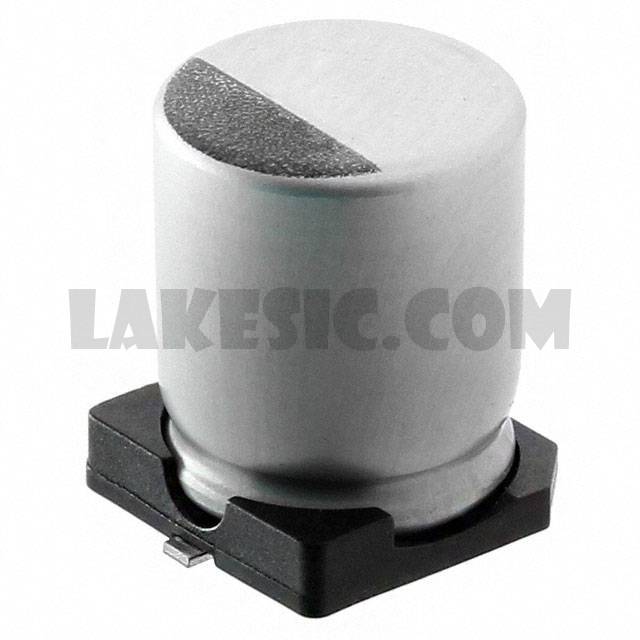

HHXA630ARA330MHA0G

Part NumberHHXA630ARA330MHA0G

To learn about the specification of HHXA630ARA330MHA0G, please search the datasheet by clicking the link above. If you couldn't find the correct datasheet, please refer to the manufacturer's official datasheet.
To process your RFQ, please add HHXA630ARA330MHA0G with quantity into BOM. Icapacitors.com does NOT require any registration to request a quote of HHXA630ARA330MHA0G.
We are offering HHXA630ARA330MHA0G for competitive price in the global market, please send us a quota request for pricing. Thank you!

Categories	Capacitors / Aluminum - Polymer Capacitors
Datasheet	HXA Series Bulletin
Standard Package	1
Manufacturer	United Chemi-Con
Series	HXA
Packaging	Cut Tape (CT)
Part Status	Active
Type	Hybrid
Capacitance	33µF
Tolerance	±20%
Voltage - Rated	63V
ESR (Equivalent Series Resistance)	40mOhm
Lifetime @ Temp.	4000 Hrs @ 125°C
Operating Temperature	-55°C ~ 125°C
Ratings	AEC-Q200
Applications	Automotive
Ripple Current @ High Frequency	1.1A @ 100kHz
Lead Spacing	-
Size / Dimension	0.315" Dia (8.00mm)
Height - Seated (Max)	0.406" (10.30mm)
Surface Mount Land Size	0.327" L x 0.327" W (8.30mm x 8.30mm)
Mounting Type	Surface Mount
Package / Case	Radial, Can - SMD
