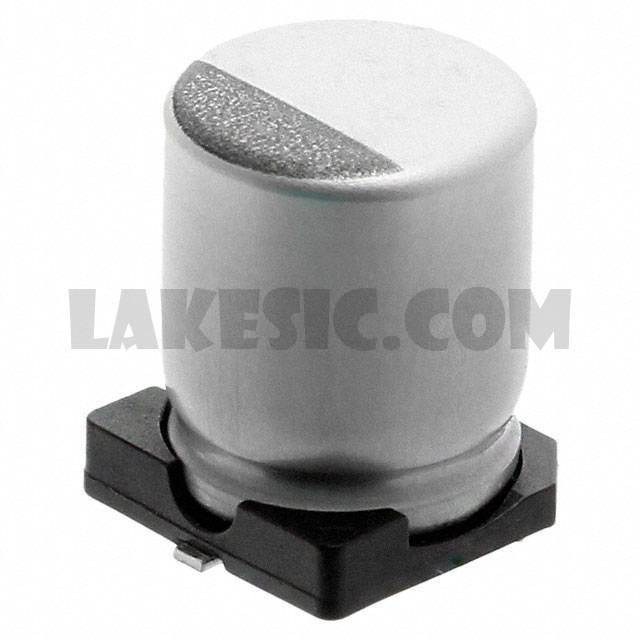

HHXB350ARA151MHA0G

Part NumberHHXB350ARA151MHA0G

To learn about the specification of HHXB350ARA151MHA0G, please search the datasheet by clicking the link above. If you couldn't find the correct datasheet, please refer to the manufacturer's official datasheet.
To process your RFQ, please add HHXB350ARA151MHA0G with quantity into BOM. Icapacitors.com does NOT require any registration to request a quote of HHXB350ARA151MHA0G.
We are offering HHXB350ARA151MHA0G for competitive price in the global market, please send us a quota request for pricing. Thank you!

Categories	Capacitors / Aluminum - Polymer Capacitors
Datasheet	HXB Series Datasheet
Standard Package	500
Manufacturer	United Chemi-Con
Series	HXB
Packaging	Tape & Reel (TR)
Part Status	Active
Type	Hybrid
Capacitance	150µF
Tolerance	±20%
Voltage - Rated	35V
ESR (Equivalent Series Resistance)	27mOhm
Lifetime @ Temp.	5000 Hrs @ 105°C
Operating Temperature	-55°C ~ 105°C
Ratings	AEC-Q200
Applications	Automotive
Ripple Current @ High Frequency	2.3A @ 100kHz
Lead Spacing	-
Size / Dimension	0.315" Dia (8.00mm)
Height - Seated (Max)	0.406" (10.30mm)
Surface Mount Land Size	0.327" L x 0.327" W (8.30mm x 8.30mm)
Mounting Type	Surface Mount
Package / Case	Radial, Can - SMD
