HP8K22TB

Part NumberHP8K22TB

ManufacturerRohm Semiconductor

Description30V NCH NCH MID POWER MOSFET

DatasheetHP8K22

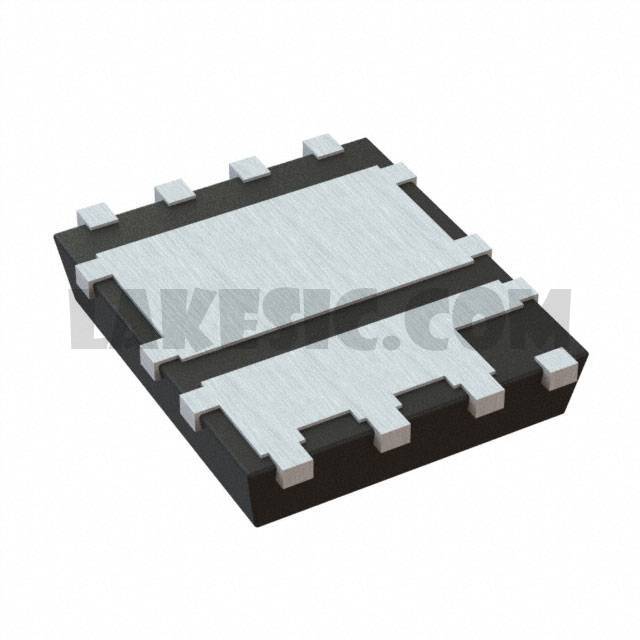

Package / Case8-PowerTDFN

Unit PriceRequest a Quote

Lead TimeTo be Confirmed

Detailed DescriptionMosfet Array 2 N-Channel (Half Bridge) 30V 27A, 57A 25W Surface Mount 8-HSOP

To learn about the specification of HP8K22TB, please search the datasheet by clicking the link above. If you couldn't find the correct datasheet, please refer to the manufacturer's official datasheet.
To process your RFQ, please add HP8K22TB with quantity into BOM. Icapacitors.com does NOT require any registration to request a quote of HP8K22TB.
We are offering HP8K22TB for competitive price in the global market, please send us a quota request for pricing. Thank you!

Payment Methods
Delivery Services

HP8K22TB - Product Attributes

Categories	Discrete Semiconductor Products / Transistors - FETs, MOSFETs - Arrays
Datasheet	HP8K22
Standard Package	1
Manufacturer	Rohm Semiconductor
Series	-
Packaging	Cut Tape (CT)
Part Status	Active
FET Type	2 N-Channel (Half Bridge)
FET Feature	-
Drain to Source Voltage (Vdss)	30V
Current - Continuous Drain (Id) @ 25°C	27A, 57A
Rds On (Max) @ Id, Vgs	4.6mOhm @ 20A, 10V
Vgs(th) (Max) @ Id	2.5V @ 1mA
Gate Charge (Qg) (Max) @ Vgs	16.8nC @ 10V
Input Capacitance (Ciss) (Max) @ Vds	1080pF @ 15V
Power - Max	25W
Operating Temperature	-55°C ~ 150°C (TJ)
Mounting Type	Surface Mount
Package / Case	8-PowerTDFN
Supplier Device Package	8-HSOP
