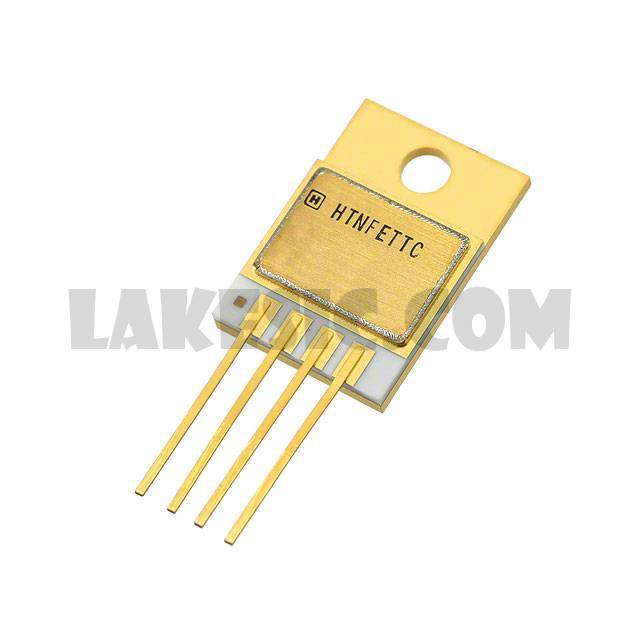

HTNFET-T

HTNFET-T

Part NumberHTNFET-T

ManufacturerHoneywell Aerospace

DescriptionMOSFET N-CH 55V 4-PIN

DatasheetHTNFET Datasheet

Package / Case4-SIP

Unit PriceRequest a Quote

Lead TimeTo be Confirmed

Detailed DescriptionN-Channel 55V 50W (Tj) Through Hole 4-Power Tab

To learn about the specification of HTNFET-T, please search the datasheet by clicking the link above. If you couldn't find the correct datasheet, please refer to the manufacturer's official datasheet.
To process your RFQ, please add HTNFET-T with quantity into BOM. Icapacitors.com does NOT require any registration to request a quote of HTNFET-T.
We are offering HTNFET-T for competitive price in the global market, please send us a quota request for pricing. Thank you!

Payment Methods
Delivery Services

HTNFET-T - Product Attributes

Categories	Discrete Semiconductor Products / Transistors - FETs, MOSFETs - Single
Datasheet	HTNFET Datasheet
Standard Package	1
Manufacturer	Honeywell Aerospace
Series	HTMOS™
Packaging	Bulk
Part Status	Active
FET Type	N-Channel
Technology	MOSFET (Metal Oxide)
Drain to Source Voltage (Vdss)	55V
Current - Continuous Drain (Id) @ 25°C	-
Drive Voltage (Max Rds On, Min Rds On)	5V
Rds On (Max) @ Id, Vgs	400mOhm @ 100mA, 5V
Vgs(th) (Max) @ Id	2.4V @ 100µA
Gate Charge (Qg) (Max) @ Vgs	4.3nC @ 5V
Vgs (Max)	10V
Input Capacitance (Ciss) (Max) @ Vds	290pF @ 28V
FET Feature	-
Power Dissipation (Max)	50W (Tj)
Operating Temperature	-55°C ~ 225°C (TJ)
Mounting Type	Through Hole
Supplier Device Package	4-Power Tab
Package / Case	4-SIP
