IHLP2525CZERR68M01
IHLP2525CZERR68M01

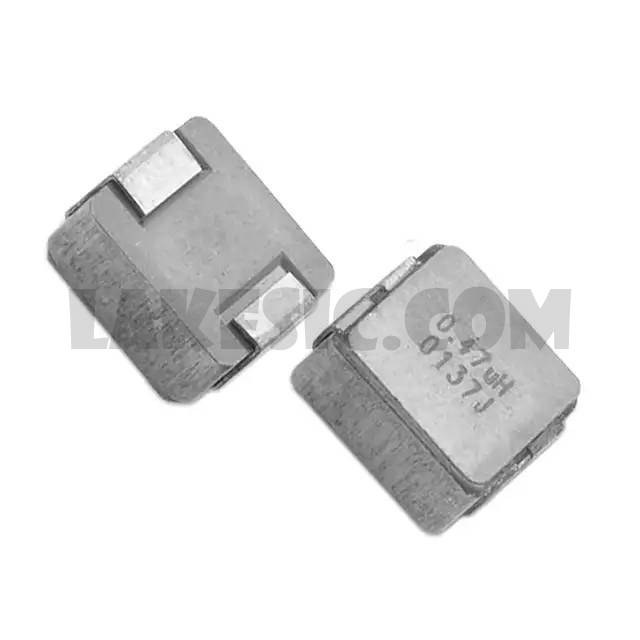

Part Number IHLP2525CZERR68M01 Description FIXED IND 680NH 15.5A 5.5 MOHM Package / Case NonstandardUnit Price Request a QuoteLead Time To be ConfirmedDetailed Description 680nH Shielded Molded Inductor 15.5A 5.5mOhm Max Nonstandard
To learn about the specification of IHLP2525CZERR68M01, please search the datasheet by clicking the link above. If you couldn't find the correct datasheet, please refer to the manufacturer's official datasheet.
To process your RFQ, please add IHLP2525CZERR68M01 with quantity into BOM. Icapacitors.com does NOT require any registration to request a quote of IHLP2525CZERR68M01.
We are offering IHLP2525CZERR68M01 for competitive price in the global market, please send us a quota request for pricing. Thank you!
Payment Methods
Delivery Services
IHLP2525CZERR68M01 - Product Attributes
Categories
Inductors, Coils, Chokes / Fixed Inductors
Datasheet IHLP-2525CZ-01 Series Standard Package 2000 Manufacturer Vishay Dale Series IHLP-2525CZ-01 Packaging Tape & Reel (TR) Part Status Active Type Molded Material - Core - Inductance 680nH Tolerance ±20% Current Rating (Amps) 15.5A Current - Saturation 25A Shielding Shielded DC Resistance (DCR) 5.5mOhm Max Q @ Freq - Frequency - Self Resonant - Ratings - Operating Temperature -55°C ~ 125°C Inductance Frequency - Test 100kHz Mounting Type Surface Mount Package / Case Nonstandard Supplier Device Package - Size / Dimension 0.270" L x 0.255" W (6.86mm x 6.47mm) Height - Seated (Max) 0.118" (3.00mm)
