IKP08N65H5XKSA1
IKP08N65H5XKSA1

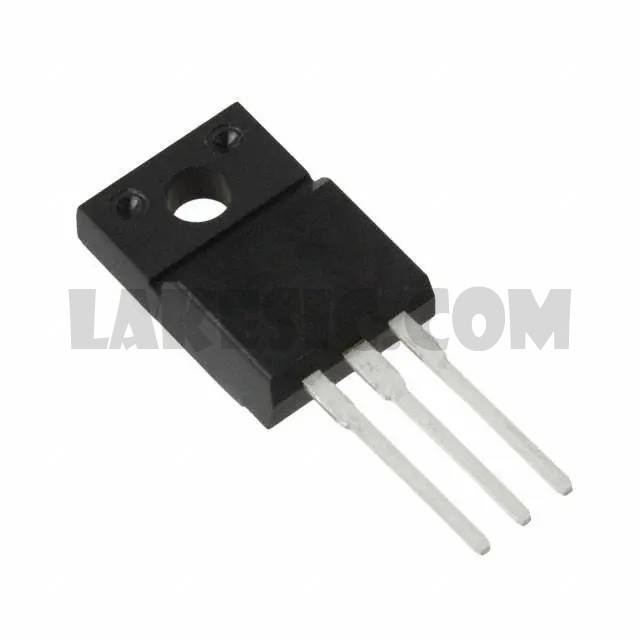

Part Number IKP08N65H5XKSA1 Description IGBT 650V 18A 70W PG-TO220-3 Package / Case TO-220-3Unit Price Request a QuoteLead Time To be ConfirmedDetailed Description IGBT 650V 18A 70W Through Hole TO-220-3
To learn about the specification of IKP08N65H5XKSA1, please search the datasheet by clicking the link above. If you couldn't find the correct datasheet, please refer to the manufacturer's official datasheet.
To process your RFQ, please add IKP08N65H5XKSA1 with quantity into BOM. Icapacitors.com does NOT require any registration to request a quote of IKP08N65H5XKSA1.
We are offering IKP08N65H5XKSA1 for competitive price in the global market, please send us a quota request for pricing. Thank you!
Payment Methods
Delivery Services
IKP08N65H5XKSA1 - Product Attributes
Categories
Discrete Semiconductor Products / Transistors - IGBTs - Single
Datasheet IKP08N65H5 Standard Package 500 Manufacturer Infineon Technologies Series TrenchStop® Packaging Tube Part Status Active IGBT Type - Voltage - Collector Emitter Breakdown (Max) 650V Current - Collector (Ic) (Max) 18A Current - Collector Pulsed (Icm) 24A Vce(on) (Max) @ Vge, Ic 2.1V @ 15V, 8A Power - Max 70W Switching Energy 70µJ (on), 30µJ (off) Input Type Standard Gate Charge 22nC Td (on/off) @ 25°C 11ns/115ns Test Condition 400V, 4A, 48Ohm, 15V Reverse Recovery Time (trr) 40ns Operating Temperature -40°C ~ 175°C (TJ) Mounting Type Through Hole Package / Case TO-220-3 Supplier Device Package TO-220-3
