IPC100N04S5L1R9ATMA1
IPC100N04S5L1R9ATMA1

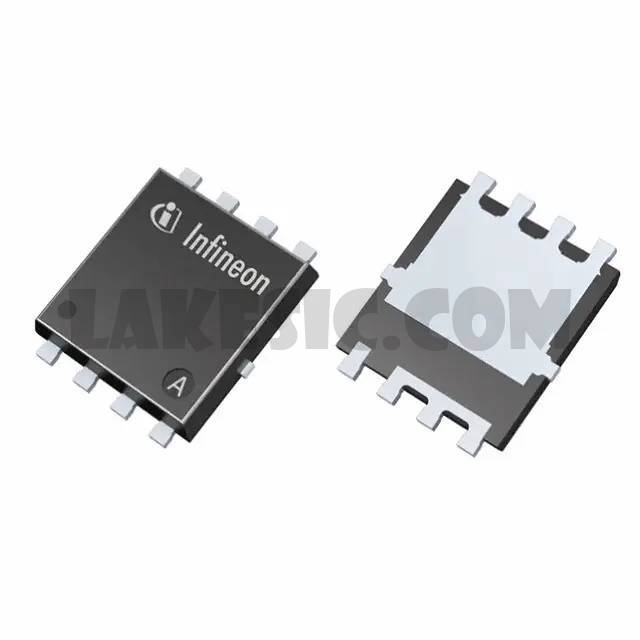

Part Number IPC100N04S5L1R9ATMA1 Description MOSFET N-CH 40V 100A 8TDSON Package / Case 8-PowerTDFNUnit Price Request a QuoteLead Time To be ConfirmedDetailed Description N-Channel 40V 100A (Tc) 100W (Tc) Surface Mount PG-TDSON-8-34
To learn about the specification of IPC100N04S5L1R9ATMA1, please search the datasheet by clicking the link above. If you couldn't find the correct datasheet, please refer to the manufacturer's official datasheet.
To process your RFQ, please add IPC100N04S5L1R9ATMA1 with quantity into BOM. Icapacitors.com does NOT require any registration to request a quote of IPC100N04S5L1R9ATMA1.
We are offering IPC100N04S5L1R9ATMA1 for competitive price in the global market, please send us a quota request for pricing. Thank you!
Payment Methods
Delivery Services
IPC100N04S5L1R9ATMA1 - Product Attributes
Categories
Discrete Semiconductor Products / Transistors - FETs, MOSFETs - Single
Datasheet IPC100N04S5L-1R9 Standard Package 5000 Manufacturer Infineon Technologies Series OptiMOS™ Packaging Tape & Reel (TR) Part Status Active FET Type N-Channel Technology MOSFET (Metal Oxide) Drain to Source Voltage (Vdss) 40V Current - Continuous Drain (Id) @ 25°C 100A (Tc) Drive Voltage (Max Rds On, Min Rds On) 4.5V, 10V Rds On (Max) @ Id, Vgs 1.9mOhm @ 50A, 10V Vgs(th) (Max) @ Id 2V @ 50µA Gate Charge (Qg) (Max) @ Vgs 81nC @ 10V Vgs (Max) ±16V Input Capacitance (Ciss) (Max) @ Vds 4310pF @ 25V FET Feature - Power Dissipation (Max) 100W (Tc) Operating Temperature -55°C ~ 175°C (TJ) Mounting Type Surface Mount Supplier Device Package PG-TDSON-8-34 Package / Case 8-PowerTDFN
