IPD90N04S405ATMA1

IPD90N04S405ATMA1

Part NumberIPD90N04S405ATMA1

ManufacturerInfineon Technologies

DescriptionMOSFET N-CH 40V 86A TO252-3-313

DatasheetIPD90N04S4-05

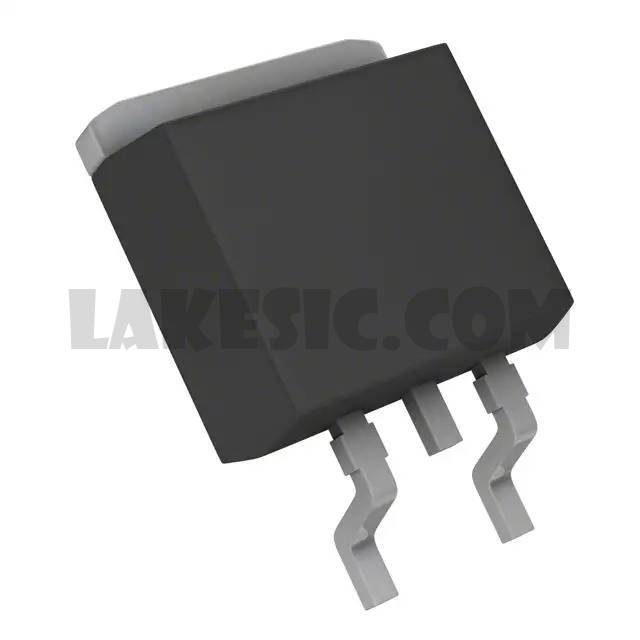

Package / CaseTO-252-3, DPak (2 Leads + Tab), SC-63

Unit PriceRequest a Quote

Lead TimeTo be Confirmed

Detailed DescriptionN-Channel 40V 86A (Tc) 65W (Tc) Surface Mount PG-TO252-3-313

To learn about the specification of IPD90N04S405ATMA1, please search the datasheet by clicking the link above. If you couldn't find the correct datasheet, please refer to the manufacturer's official datasheet.
To process your RFQ, please add IPD90N04S405ATMA1 with quantity into BOM. Icapacitors.com does NOT require any registration to request a quote of IPD90N04S405ATMA1.
We are offering IPD90N04S405ATMA1 for competitive price in the global market, please send us a quota request for pricing. Thank you!

Payment Methods
Delivery Services

IPD90N04S405ATMA1 - Product Attributes

Categories	Discrete Semiconductor Products / Transistors - FETs, MOSFETs - Single
Datasheet	IPD90N04S4-05
Standard Package	1
Manufacturer	Infineon Technologies
Series	Automotive, AEC-Q101, OptiMOS™
Packaging	Cut Tape (CT)
Part Status	Active
FET Type	N-Channel
Technology	MOSFET (Metal Oxide)
Drain to Source Voltage (Vdss)	40V
Current - Continuous Drain (Id) @ 25°C	86A (Tc)
Drive Voltage (Max Rds On, Min Rds On)	10V
Rds On (Max) @ Id, Vgs	5.2mOhm @ 86A, 10V
Vgs(th) (Max) @ Id	4V @ 30µA
Gate Charge (Qg) (Max) @ Vgs	37nC @ 10V
Vgs (Max)	±20V
Input Capacitance (Ciss) (Max) @ Vds	2960pF @ 25V
FET Feature	-
Power Dissipation (Max)	65W (Tc)
Operating Temperature	-55°C ~ 175°C (TJ)
Mounting Type	Surface Mount
Supplier Device Package	PG-TO252-3-313
Package / Case	TO-252-3, DPak (2 Leads + Tab), SC-63
