IPDD60R050G7XTMA1

IPDD60R050G7XTMA1

Part NumberIPDD60R050G7XTMA1

ManufacturerInfineon Technologies

DescriptionMOSFET NCH 650V 135A PG-HDSOP-10

DatasheetIPDD60R050G7

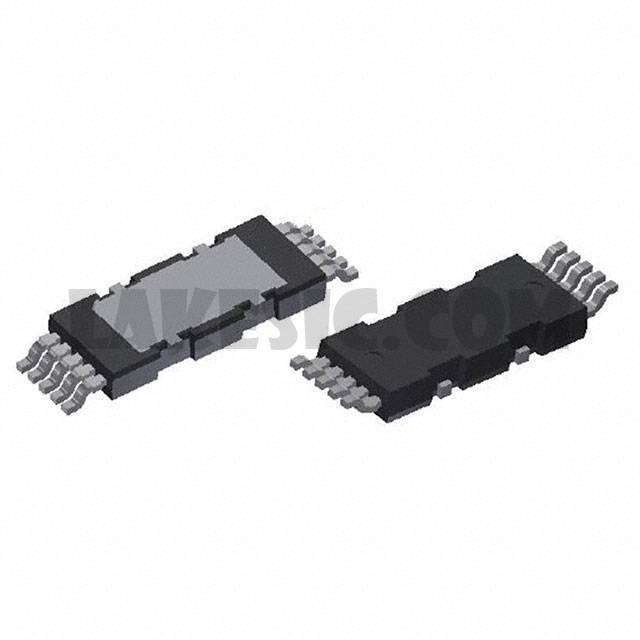

Package / Case10-PowerSOP Module

Unit PriceRequest a Quote

Lead TimeTo be Confirmed

Detailed DescriptionN-Channel 600V 47A (Tc) 278W (Tc) Surface Mount PG-HDSOP-10-1

To learn about the specification of IPDD60R050G7XTMA1, please search the datasheet by clicking the link above. If you couldn't find the correct datasheet, please refer to the manufacturer's official datasheet.
To process your RFQ, please add IPDD60R050G7XTMA1 with quantity into BOM. Icapacitors.com does NOT require any registration to request a quote of IPDD60R050G7XTMA1.
We are offering IPDD60R050G7XTMA1 for competitive price in the global market, please send us a quota request for pricing. Thank you!

Payment Methods
Delivery Services

IPDD60R050G7XTMA1 - Product Attributes

Categories	Discrete Semiconductor Products / Transistors - FETs, MOSFETs - Single
Datasheet	IPDD60R050G7
Standard Package	1700
Manufacturer	Infineon Technologies
Series	CoolMOS™ G7
Packaging	Tape & Reel (TR)
Part Status	Active
FET Type	N-Channel
Technology	MOSFET (Metal Oxide)
Drain to Source Voltage (Vdss)	600V
Current - Continuous Drain (Id) @ 25°C	47A (Tc)
Drive Voltage (Max Rds On, Min Rds On)	10V
Rds On (Max) @ Id, Vgs	50mOhm @ 15.9A, 10V
Vgs(th) (Max) @ Id	4V @ 800µA
Gate Charge (Qg) (Max) @ Vgs	68nC @ 10V
Vgs (Max)	±20V
Input Capacitance (Ciss) (Max) @ Vds	2670pF @ 400V
FET Feature	-
Power Dissipation (Max)	278W (Tc)
Operating Temperature	-55°C ~ 150°C (TJ)
Mounting Type	Surface Mount
Supplier Device Package	PG-HDSOP-10-1
Package / Case	10-PowerSOP Module
