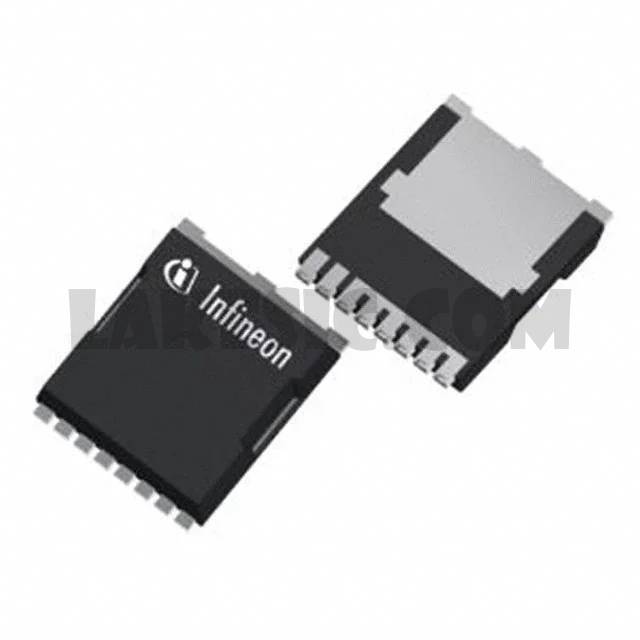

IPT60R102G7XTMA1

IPT60R102G7XTMA1

Part NumberIPT60R102G7XTMA1

ManufacturerInfineon Technologies

DescriptionMOSFET N-CH 650V 23A HSOF-8

DatasheetIPT60R102G7

Package / Case8-PowerSFN

Unit PriceRequest a Quote

Lead TimeTo be Confirmed

Detailed DescriptionN-Channel 650V 23A (Tc) 141W (Tc) Surface Mount PG-HSOF-8-2

To learn about the specification of IPT60R102G7XTMA1, please search the datasheet by clicking the link above. If you couldn't find the correct datasheet, please refer to the manufacturer's official datasheet.
To process your RFQ, please add IPT60R102G7XTMA1 with quantity into BOM. Icapacitors.com does NOT require any registration to request a quote of IPT60R102G7XTMA1.
We are offering IPT60R102G7XTMA1 for competitive price in the global market, please send us a quota request for pricing. Thank you!

Payment Methods
Delivery Services

IPT60R102G7XTMA1 - Product Attributes

Categories	Discrete Semiconductor Products / Transistors - FETs, MOSFETs - Single
Datasheet	IPT60R102G7
Standard Package	1
Manufacturer	Infineon Technologies
Series	CoolMOS™ G7
Packaging	Cut Tape (CT)
Part Status	Active
FET Type	N-Channel
Technology	MOSFET (Metal Oxide)
Drain to Source Voltage (Vdss)	650V
Current - Continuous Drain (Id) @ 25°C	23A (Tc)
Drive Voltage (Max Rds On, Min Rds On)	10V
Rds On (Max) @ Id, Vgs	102mOhm @ 7.8A, 10V
Vgs(th) (Max) @ Id	4V @ 390µA
Gate Charge (Qg) (Max) @ Vgs	34nC @ 10V
Vgs (Max)	±20V
Input Capacitance (Ciss) (Max) @ Vds	1320pF @ 400V
FET Feature	-
Power Dissipation (Max)	141W (Tc)
Operating Temperature	-55°C ~ 150°C (TJ)
Mounting Type	Surface Mount
Supplier Device Package	PG-HSOF-8-2
Package / Case	8-PowerSFN
