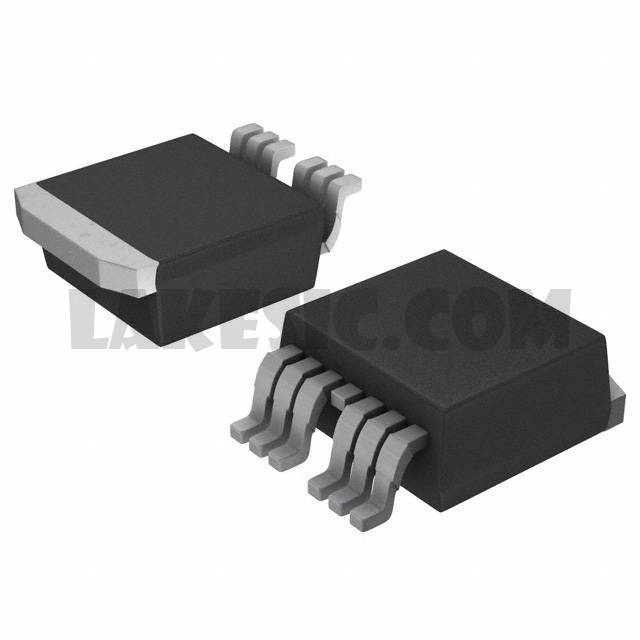

IRF3805STRL-7PP

IRF3805STRL-7PP

Part NumberIRF3805STRL-7PP

ManufacturerInfineon Technologies

DescriptionMOSFET N-CH 55V 160A D2PAK-7

DatasheetIRF3805 (S,L) -7PPbF

Package / CaseTO-263-7, D²Pak (6 Leads + Tab), TO-263CB

Unit PriceRequest a Quote

Lead TimeTo be Confirmed

Detailed DescriptionN-Channel 55V 160A (Tc) 300W (Tc) Surface Mount D2PAK (7-Lead)

To learn about the specification of IRF3805STRL-7PP, please search the datasheet by clicking the link above. If you couldn't find the correct datasheet, please refer to the manufacturer's official datasheet.
To process your RFQ, please add IRF3805STRL-7PP with quantity into BOM. Icapacitors.com does NOT require any registration to request a quote of IRF3805STRL-7PP.
We are offering IRF3805STRL-7PP for competitive price in the global market, please send us a quota request for pricing. Thank you!

Payment Methods
Delivery Services

IRF3805STRL-7PP - Product Attributes

Categories	Discrete Semiconductor Products / Transistors - FETs, MOSFETs - Single
Datasheet	IRF3805 (S,L) -7PPbF
Standard Package	800
Manufacturer	Infineon Technologies
Series	HEXFET®
Packaging	Tape & Reel (TR)
Part Status	Active
FET Type	N-Channel
Technology	MOSFET (Metal Oxide)
Drain to Source Voltage (Vdss)	55V
Current - Continuous Drain (Id) @ 25°C	160A (Tc)
Drive Voltage (Max Rds On, Min Rds On)	10V
Rds On (Max) @ Id, Vgs	2.6mOhm @ 140A, 10V
Vgs(th) (Max) @ Id	4V @ 250µA
Gate Charge (Qg) (Max) @ Vgs	200nC @ 10V
Vgs (Max)	±20V
Input Capacitance (Ciss) (Max) @ Vds	7820pF @ 25V
FET Feature	-
Power Dissipation (Max)	300W (Tc)
Operating Temperature	-55°C ~ 175°C (TJ)
Mounting Type	Surface Mount
Supplier Device Package	D2PAK (7-Lead)
Package / Case	TO-263-7, D²Pak (6 Leads + Tab), TO-263CB
