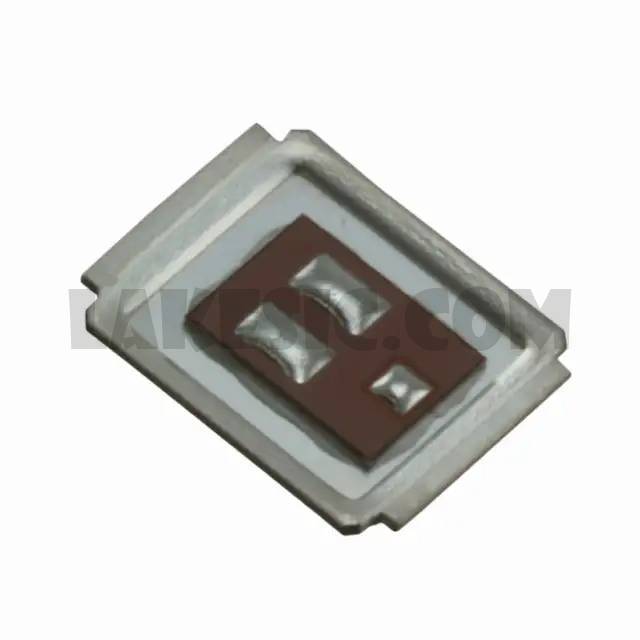

IRF6715MTRPBF

IRF6715MTRPBF

Part NumberIRF6715MTRPBF

ManufacturerInfineon Technologies

DescriptionMOSFET N-CH 25V 34A DIRECTFET

DatasheetIRF6715M(TR)PBF

Package / CaseDirectFET™ Isometric MX

Unit PriceRequest a Quote

Lead TimeTo be Confirmed

Detailed DescriptionN-Channel 25V 34A (Ta), 180A (Tc) 2.8W (Ta), 78W (Tc) Surface Mount DIRECTFET™ MX

To learn about the specification of IRF6715MTRPBF, please search the datasheet by clicking the link above. If you couldn't find the correct datasheet, please refer to the manufacturer's official datasheet.
To process your RFQ, please add IRF6715MTRPBF with quantity into BOM. Icapacitors.com does NOT require any registration to request a quote of IRF6715MTRPBF.
We are offering IRF6715MTRPBF for competitive price in the global market, please send us a quota request for pricing. Thank you!

Payment Methods
Delivery Services

IRF6715MTRPBF - Product Attributes

Categories	Discrete Semiconductor Products / Transistors - FETs, MOSFETs - Single
Datasheet	IRF6715M(TR)PBF
Standard Package	1
Manufacturer	Infineon Technologies
Series	HEXFET®
Packaging	Cut Tape (CT)
Part Status	Active
FET Type	N-Channel
Technology	MOSFET (Metal Oxide)
Drain to Source Voltage (Vdss)	25V
Current - Continuous Drain (Id) @ 25°C	34A (Ta), 180A (Tc)
Drive Voltage (Max Rds On, Min Rds On)	4.5V, 10V
Rds On (Max) @ Id, Vgs	1.6mOhm @ 34A, 10V
Vgs(th) (Max) @ Id	2.4V @ 100µA
Gate Charge (Qg) (Max) @ Vgs	59nC @ 4.5V
Vgs (Max)	±20V
Input Capacitance (Ciss) (Max) @ Vds	5340pF @ 13V
FET Feature	-
Power Dissipation (Max)	2.8W (Ta), 78W (Tc)
Operating Temperature	-40°C ~ 150°C (TJ)
Mounting Type	Surface Mount
Supplier Device Package	DIRECTFET™ MX
Package / Case	DirectFET™ Isometric MX
