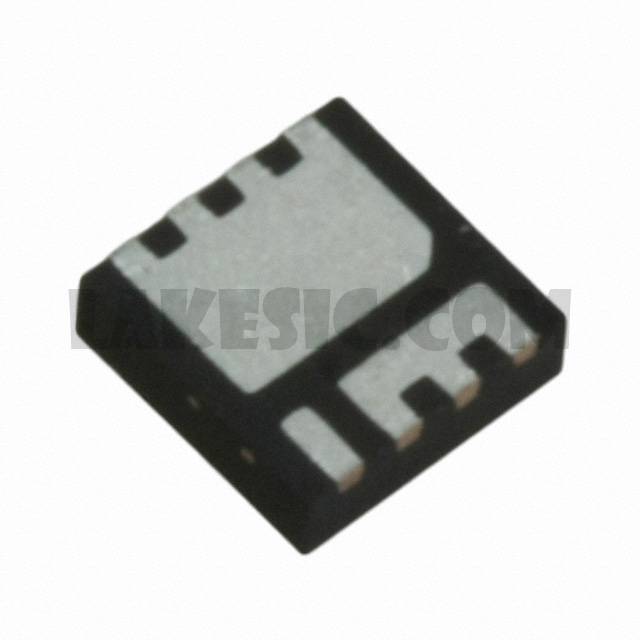

IRFH3702TRPBF

IRFH3702TRPBF

Part NumberIRFH3702TRPBF

ManufacturerInfineon Technologies

DescriptionMOSFET N-CH 30V 16A 8PQFN

DatasheetIRFH3702PBF

Package / Case8-PowerVDFN

Unit PriceRequest a Quote

Lead TimeTo be Confirmed

Detailed DescriptionN-Channel 30V 16A (Ta), 42A (Tc) 2.8W (Ta) Surface Mount 8-PQFN (3x3)

To learn about the specification of IRFH3702TRPBF, please search the datasheet by clicking the link above. If you couldn't find the correct datasheet, please refer to the manufacturer's official datasheet.
To process your RFQ, please add IRFH3702TRPBF with quantity into BOM. Icapacitors.com does NOT require any registration to request a quote of IRFH3702TRPBF.
We are offering IRFH3702TRPBF for competitive price in the global market, please send us a quota request for pricing. Thank you!

Payment Methods
Delivery Services

IRFH3702TRPBF - Product Attributes

Categories	Discrete Semiconductor Products / Transistors - FETs, MOSFETs - Single
Datasheet	IRFH3702PBF
Standard Package	1
Manufacturer	Infineon Technologies
Series	HEXFET®
Packaging	Cut Tape (CT)
Part Status	Active
FET Type	N-Channel
Technology	MOSFET (Metal Oxide)
Drain to Source Voltage (Vdss)	30V
Current - Continuous Drain (Id) @ 25°C	16A (Ta), 42A (Tc)
Drive Voltage (Max Rds On, Min Rds On)	4.5V, 10V
Rds On (Max) @ Id, Vgs	7.1mOhm @ 16A, 10V
Vgs(th) (Max) @ Id	2.35V @ 25µA
Gate Charge (Qg) (Max) @ Vgs	14nC @ 4.5V
Vgs (Max)	±20V
Input Capacitance (Ciss) (Max) @ Vds	1510pF @ 15V
FET Feature	-
Power Dissipation (Max)	2.8W (Ta)
Operating Temperature	-55°C ~ 150°C (TJ)
Mounting Type	Surface Mount
Supplier Device Package	8-PQFN (3x3)
Package / Case	8-PowerVDFN
