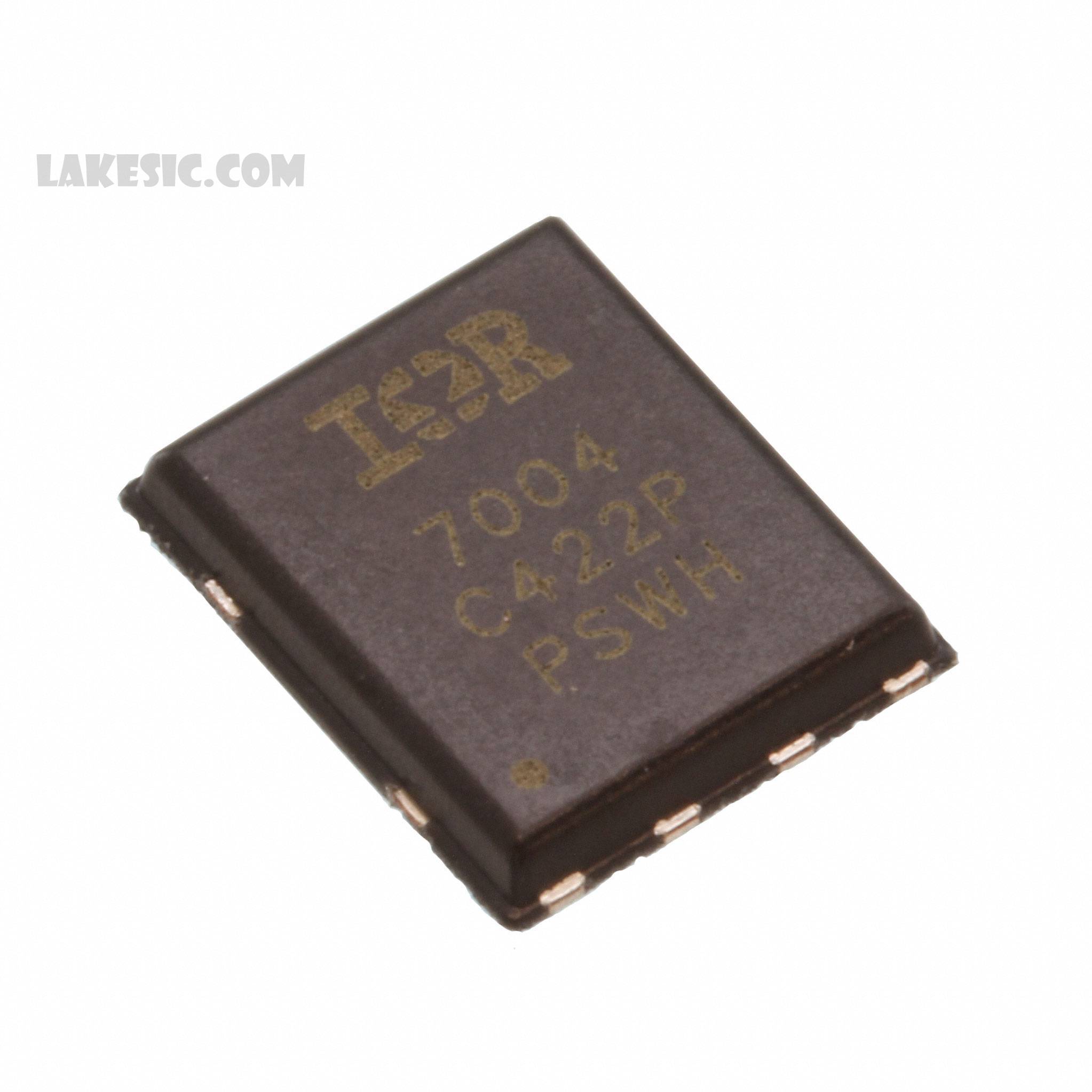

IRFH7004TRPBF

IRFH7004TRPBF

Part NumberIRFH7004TRPBF

ManufacturerInfineon Technologies

DescriptionMOSFET N CH 40V 100A PQFN 5X6

DatasheetIRFH7004PbF

Package / Case8-VQFN Exposed Pad

Unit PriceRequest a Quote

Lead TimeTo be Confirmed

Detailed DescriptionN-Channel 40V 100A (Tc) 156W (Tc) Surface Mount 8-PQFN (5x6)

To learn about the specification of IRFH7004TRPBF, please search the datasheet by clicking the link above. If you couldn't find the correct datasheet, please refer to the manufacturer's official datasheet.
To process your RFQ, please add IRFH7004TRPBF with quantity into BOM. Icapacitors.com does NOT require any registration to request a quote of IRFH7004TRPBF.
We are offering IRFH7004TRPBF for competitive price in the global market, please send us a quota request for pricing. Thank you!

Payment Methods
Delivery Services

IRFH7004TRPBF - Product Attributes

Categories	Discrete Semiconductor Products / Transistors - FETs, MOSFETs - Single
Datasheet	IRFH7004PbF
Standard Package	1
Manufacturer	Infineon Technologies
Series	HEXFET®, StrongIRFET™
Packaging	Cut Tape (CT)
Part Status	Active
FET Type	N-Channel
Technology	MOSFET (Metal Oxide)
Drain to Source Voltage (Vdss)	40V
Current - Continuous Drain (Id) @ 25°C	100A (Tc)
Drive Voltage (Max Rds On, Min Rds On)	6V, 10V
Rds On (Max) @ Id, Vgs	1.4mOhm @ 100A, 10V
Vgs(th) (Max) @ Id	3.9V @ 150µA
Gate Charge (Qg) (Max) @ Vgs	194nC @ 10V
Vgs (Max)	±20V
Input Capacitance (Ciss) (Max) @ Vds	6419pF @ 25V
FET Feature	-
Power Dissipation (Max)	156W (Tc)
Operating Temperature	-55°C ~ 150°C (TJ)
Mounting Type	Surface Mount
Supplier Device Package	8-PQFN (5x6)
Package / Case	8-VQFN Exposed Pad
