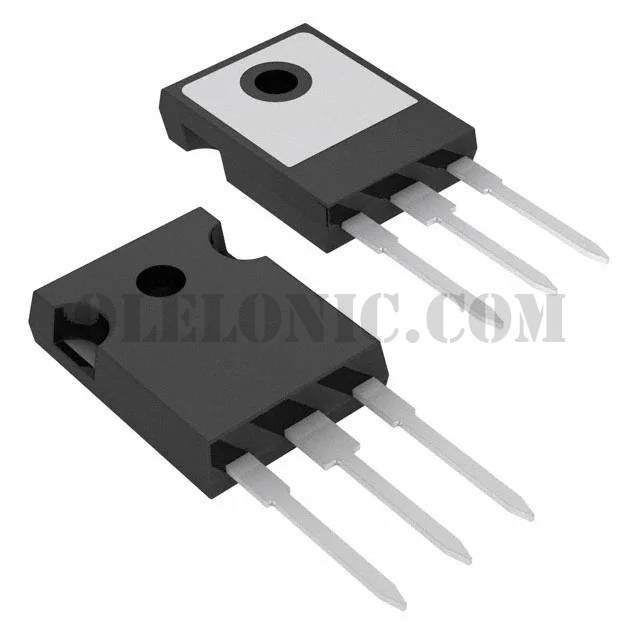

IRFP064PBF

IRFP064PBF

Part NumberIRFP064PBF

ManufacturerVishay Siliconix

DescriptionMOSFET N-CH 60V 70A TO-247AC

DatasheetIRFP064

Package / CaseTO-247-3

Unit PriceRequest a Quote

Lead TimeTo be Confirmed

Detailed DescriptionN-Channel 60V 70A (Tc) 300W (Tc) Through Hole TO-247-3

To learn about the specification of IRFP064PBF, please search the datasheet by clicking the link above. If you couldn't find the correct datasheet, please refer to the manufacturer's official datasheet.
To process your RFQ, please add IRFP064PBF with quantity into BOM. Icapacitors.com does NOT require any registration to request a quote of IRFP064PBF.
We are offering IRFP064PBF for competitive price in the global market, please send us a quota request for pricing. Thank you!

Payment Methods
Delivery Services

IRFP064PBF - Product Attributes

Categories	Discrete Semiconductor Products / Transistors - FETs, MOSFETs - Single
Datasheet	IRFP064
Standard Package	25
Manufacturer	Vishay Siliconix
Series	-
Packaging	Tube
Part Status	Active
FET Type	N-Channel
Technology	MOSFET (Metal Oxide)
Drain to Source Voltage (Vdss)	60V
Current - Continuous Drain (Id) @ 25°C	70A (Tc)
Drive Voltage (Max Rds On, Min Rds On)	10V
Rds On (Max) @ Id, Vgs	9mOhm @ 78A, 10V
Vgs(th) (Max) @ Id	4V @ 250µA
Gate Charge (Qg) (Max) @ Vgs	190nC @ 10V
Vgs (Max)	±20V
Input Capacitance (Ciss) (Max) @ Vds	7400pF @ 25V
FET Feature	-
Power Dissipation (Max)	300W (Tc)
Operating Temperature	-55°C ~ 175°C (TJ)
Mounting Type	Through Hole
Supplier Device Package	TO-247-3
Package / Case	TO-247-3
