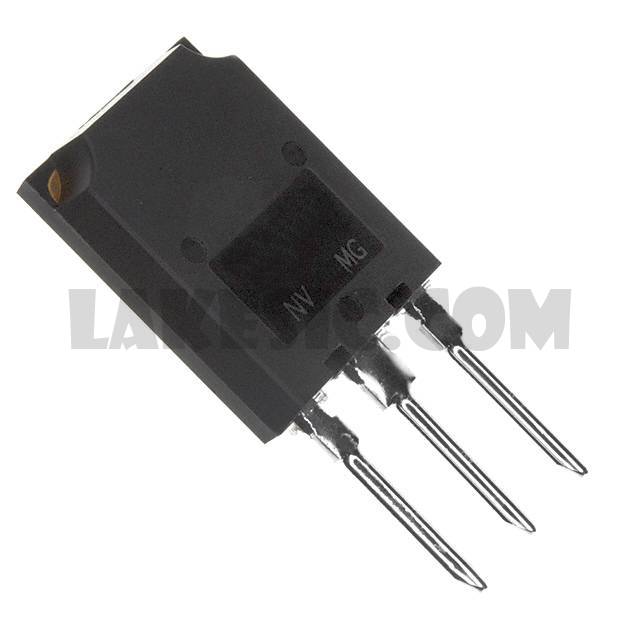

IRFPS40N60KPBF

IRFPS40N60KPBF

Part NumberIRFPS40N60KPBF

ManufacturerVishay Siliconix

DescriptionMOSFET N-CH 600V 40A SUPER247

DatasheetIRFPS40N60K,SIHFPS40N60K

Package / CaseTO-274AA

Unit PriceRequest a Quote

Lead TimeTo be Confirmed

Detailed DescriptionN-Channel 600V 40A (Tc) 570W (Tc) Through Hole SUPER-247™ (TO-274AA)

To learn about the specification of IRFPS40N60KPBF, please search the datasheet by clicking the link above. If you couldn't find the correct datasheet, please refer to the manufacturer's official datasheet.
To process your RFQ, please add IRFPS40N60KPBF with quantity into BOM. Icapacitors.com does NOT require any registration to request a quote of IRFPS40N60KPBF.
We are offering IRFPS40N60KPBF for competitive price in the global market, please send us a quota request for pricing. Thank you!

Payment Methods
Delivery Services

IRFPS40N60KPBF - Product Attributes

Categories	Discrete Semiconductor Products / Transistors - FETs, MOSFETs - Single
Datasheet	IRFPS40N60K,SIHFPS40N60K
Standard Package	500
Manufacturer	Vishay Siliconix
Series	-
Packaging	Tube
Part Status	Active
FET Type	N-Channel
Technology	MOSFET (Metal Oxide)
Drain to Source Voltage (Vdss)	600V
Current - Continuous Drain (Id) @ 25°C	40A (Tc)
Drive Voltage (Max Rds On, Min Rds On)	10V
Rds On (Max) @ Id, Vgs	130mOhm @ 24A, 10V
Vgs(th) (Max) @ Id	5V @ 250µA
Gate Charge (Qg) (Max) @ Vgs	330nC @ 10V
Vgs (Max)	±30V
Input Capacitance (Ciss) (Max) @ Vds	7970pF @ 25V
FET Feature	-
Power Dissipation (Max)	570W (Tc)
Operating Temperature	-55°C ~ 150°C (TJ)
Mounting Type	Through Hole
Supplier Device Package	SUPER-247™ (TO-274AA)
Package / Case	TO-274AA
