IRFR9120TRLPBF

IRFR9120TRLPBF

Part NumberIRFR9120TRLPBF

ManufacturerVishay Siliconix

DescriptionMOSFET P-CH 100V 5.6A DPAK

DatasheetIRFR9120, IRFU9120

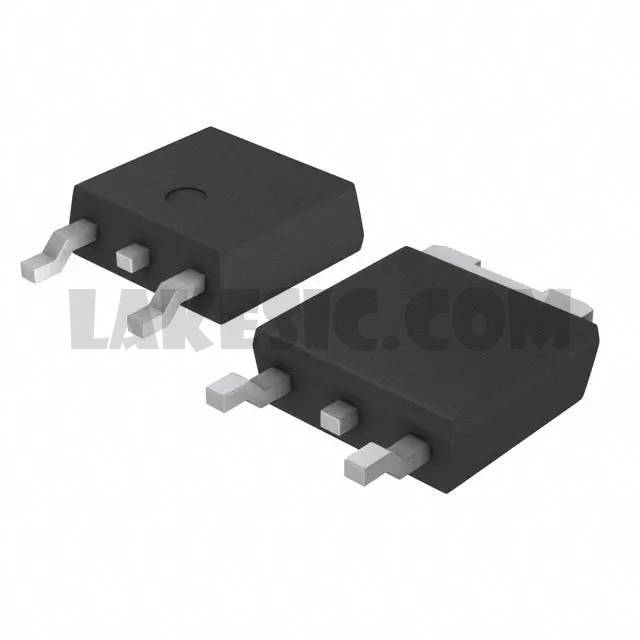

Package / CaseTO-252-3, DPak (2 Leads + Tab), SC-63

Unit PriceRequest a Quote

Lead TimeTo be Confirmed

Detailed DescriptionP-Channel 100V 5.6A (Tc) 2.5W (Ta), 42W (Tc) Surface Mount D-Pak

To learn about the specification of IRFR9120TRLPBF, please search the datasheet by clicking the link above. If you couldn't find the correct datasheet, please refer to the manufacturer's official datasheet.
To process your RFQ, please add IRFR9120TRLPBF with quantity into BOM. Icapacitors.com does NOT require any registration to request a quote of IRFR9120TRLPBF.
We are offering IRFR9120TRLPBF for competitive price in the global market, please send us a quota request for pricing. Thank you!

Payment Methods
Delivery Services

IRFR9120TRLPBF - Product Attributes

Categories	Discrete Semiconductor Products / Transistors - FETs, MOSFETs - Single
Datasheet	IRFR9120, IRFU9120
Standard Package	3000
Manufacturer	Vishay Siliconix
Series	-
Packaging	Tape & Reel (TR)
Part Status	Active
FET Type	P-Channel
Technology	MOSFET (Metal Oxide)
Drain to Source Voltage (Vdss)	100V
Current - Continuous Drain (Id) @ 25°C	5.6A (Tc)
Drive Voltage (Max Rds On, Min Rds On)	10V
Rds On (Max) @ Id, Vgs	600mOhm @ 3.4A, 10V
Vgs(th) (Max) @ Id	4V @ 250µA
Gate Charge (Qg) (Max) @ Vgs	18nC @ 10V
Vgs (Max)	±20V
Input Capacitance (Ciss) (Max) @ Vds	390pF @ 25V
FET Feature	-
Power Dissipation (Max)	2.5W (Ta), 42W (Tc)
Operating Temperature	-55°C ~ 150°C (TJ)
Mounting Type	Surface Mount
Supplier Device Package	D-Pak
Package / Case	TO-252-3, DPak (2 Leads + Tab), SC-63
