IRGP4066D-EPBF
IRGP4066D-EPBF

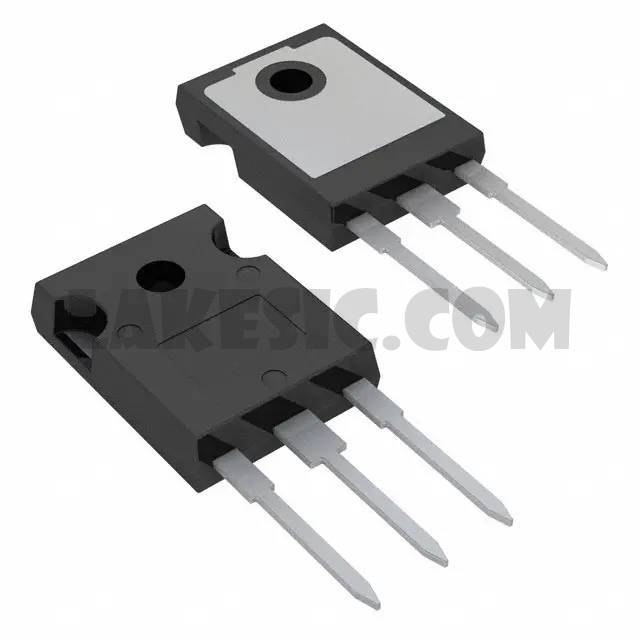

Part Number IRGP4066D-EPBF Description IGBT 600V 140A 454W TO247AD Package / Case TO-247-3Unit Price Request a QuoteLead Time To be ConfirmedDetailed Description IGBT Trench 600V 140A 454W Through Hole TO-247AD
To learn about the specification of IRGP4066D-EPBF, please search the datasheet by clicking the link above. If you couldn't find the correct datasheet, please refer to the manufacturer's official datasheet.
To process your RFQ, please add IRGP4066D-EPBF with quantity into BOM. Icapacitors.com does NOT require any registration to request a quote of IRGP4066D-EPBF.
We are offering IRGP4066D-EPBF for competitive price in the global market, please send us a quota request for pricing. Thank you!
Payment Methods
Delivery Services
IRGP4066D-EPBF - Product Attributes
Categories
Discrete Semiconductor Products / Transistors - IGBTs - Single
Datasheet IRGP4066D(-E)PBF Standard Package 25 Manufacturer Infineon Technologies Series - Packaging Tube Part Status Active IGBT Type Trench Voltage - Collector Emitter Breakdown (Max) 600V Current - Collector (Ic) (Max) 140A Current - Collector Pulsed (Icm) 225A Vce(on) (Max) @ Vge, Ic 2.1V @ 15V, 75A Power - Max 454W Switching Energy 2.47mJ (on), 2.16mJ (off) Input Type Standard Gate Charge 150nC Td (on/off) @ 25°C 50ns/200ns Test Condition 400V, 75A, 10Ohm, 15V Reverse Recovery Time (trr) 155ns Operating Temperature -55°C ~ 175°C (TJ) Mounting Type Through Hole Package / Case TO-247-3 Supplier Device Package TO-247AD
