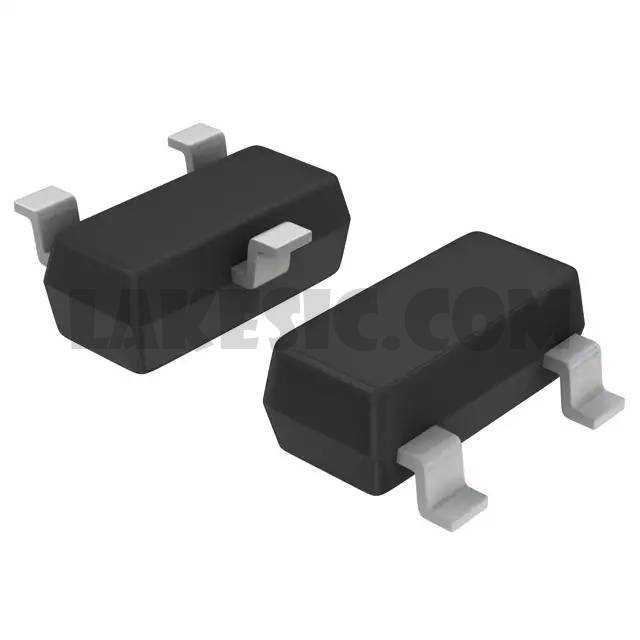

IRLML0100TRPBF

IRLML0100TRPBF

Part NumberIRLML0100TRPBF

ManufacturerInfineon Technologies

DescriptionMOSFET N-CH 100V 1.6A SOT-23-3

DatasheetIRLML0100TRPBF

Package / CaseTO-236-3, SC-59, SOT-23-3

Unit PriceRequest a Quote

Lead TimeTo be Confirmed

Detailed DescriptionN-Channel 100V 1.6A (Ta) 1.3W (Ta) Surface Mount Micro3™/SOT-23

To learn about the specification of IRLML0100TRPBF, please search the datasheet by clicking the link above. If you couldn't find the correct datasheet, please refer to the manufacturer's official datasheet.
To process your RFQ, please add IRLML0100TRPBF with quantity into BOM. Icapacitors.com does NOT require any registration to request a quote of IRLML0100TRPBF.
We are offering IRLML0100TRPBF for competitive price in the global market, please send us a quota request for pricing. Thank you!

Payment Methods
Delivery Services

IRLML0100TRPBF - Product Attributes

Categories	Discrete Semiconductor Products / Transistors - FETs, MOSFETs - Single
Datasheet	IRLML0100TRPBF
Standard Package	1
Manufacturer	Infineon Technologies
Series	HEXFET®
Packaging	Cut Tape (CT)
Part Status	Active
FET Type	N-Channel
Technology	MOSFET (Metal Oxide)
Drain to Source Voltage (Vdss)	100V
Current - Continuous Drain (Id) @ 25°C	1.6A (Ta)
Drive Voltage (Max Rds On, Min Rds On)	4.5V, 10V
Rds On (Max) @ Id, Vgs	220mOhm @ 1.6A, 10V
Vgs(th) (Max) @ Id	2.5V @ 25µA
Gate Charge (Qg) (Max) @ Vgs	2.5nC @ 4.5V
Vgs (Max)	±16V
Input Capacitance (Ciss) (Max) @ Vds	290pF @ 25V
FET Feature	-
Power Dissipation (Max)	1.3W (Ta)
Operating Temperature	-55°C ~ 150°C (TJ)
Mounting Type	Surface Mount
Supplier Device Package	Micro3™/SOT-23
Package / Case	TO-236-3, SC-59, SOT-23-3
