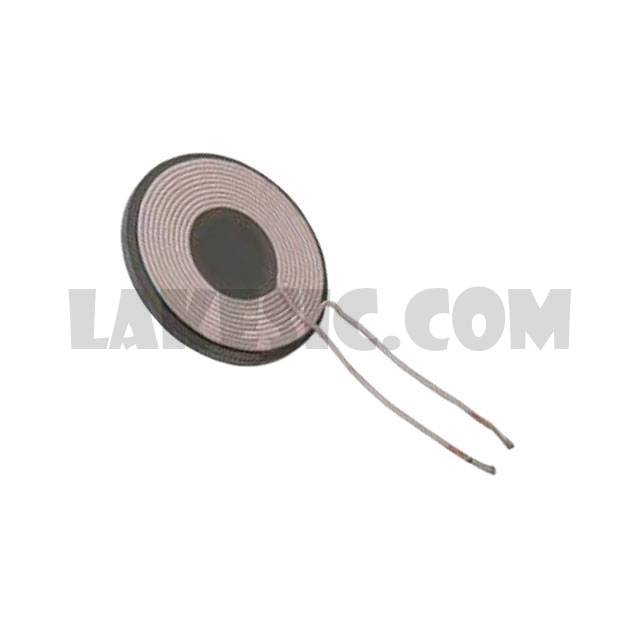

IWTX47R0BEEB6R3J11

IWTX47R0BEEB6R3J11

Part NumberIWTX47R0BEEB6R3J11

ManufacturerVishay Dale

DescriptionWIRELESS CHARGING COIL

DatasheetIWTX-47R0BE-11

Package / Case

Unit PriceRequest a Quote

Lead TimeTo be Confirmed

Detailed Description1 Coil, 1 Layer 6.3µH Wireless Charging Coil Transmitter 38mOhm

To learn about the specification of IWTX47R0BEEB6R3J11, please search the datasheet by clicking the link above. If you couldn't find the correct datasheet, please refer to the manufacturer's official datasheet.
To process your RFQ, please add IWTX47R0BEEB6R3J11 with quantity into BOM. Icapacitors.com does NOT require any registration to request a quote of IWTX47R0BEEB6R3J11.
We are offering IWTX47R0BEEB6R3J11 for competitive price in the global market, please send us a quota request for pricing. Thank you!

Payment Methods
Delivery Services

IWTX47R0BEEB6R3J11 - Product Attributes

Categories	Inductors, Coils, Chokes / Wireless Charging Coils
Datasheet	IWTX-47R0BE-11
Standard Package	60
Manufacturer	Vishay Dale
Series	-
Part Status	Active
Function	Transmitter
Type	1 Coil, 1 Layer
Inductance	6.3µH
Tolerance	±5%
DC Resistance (DCR)	38mOhm
Q @ Freq	190 @ 200kHz
Current Rating (Amps)	7A
Current - Saturation	22A
Frequency - Self Resonant	22MHz
Operating Temperature	-55°C ~ 105°C
Size / Dimension	1.85" Dia x 0.19" H (47.0mm x 4.9mm)
