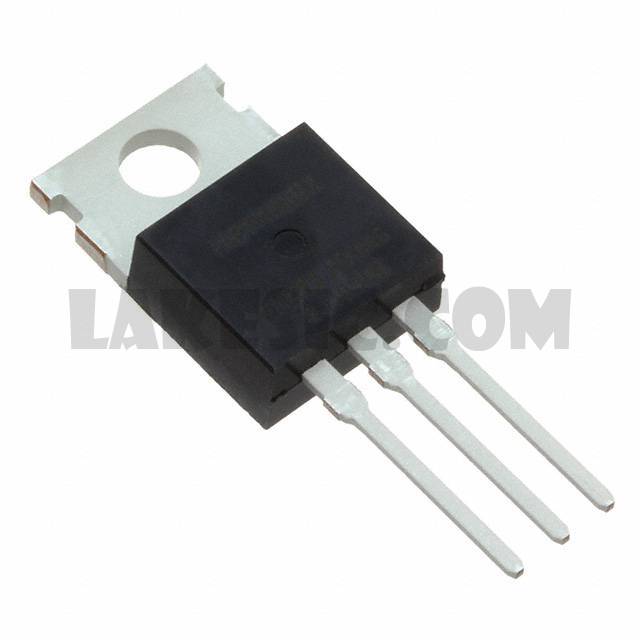

IXFP4N85X

IXFP4N85X

Part NumberIXFP4N85X

ManufacturerIXYS

DescriptionMOSFET N-CH 850V 3.5A TO220AB

DatasheetIXFx4N85X

Package / CaseTO-220-3

Unit PriceRequest a Quote

Lead TimeTo be Confirmed

Detailed DescriptionN-Channel 850V 3.5A (Tc) 150W (Tc) Through Hole TO-220AB (IXFP)

To learn about the specification of IXFP4N85X, please search the datasheet by clicking the link above. If you couldn't find the correct datasheet, please refer to the manufacturer's official datasheet.
To process your RFQ, please add IXFP4N85X with quantity into BOM. Icapacitors.com does NOT require any registration to request a quote of IXFP4N85X.
We are offering IXFP4N85X for competitive price in the global market, please send us a quota request for pricing. Thank you!

Payment Methods
Delivery Services

IXFP4N85X - Product Attributes

Categories	Discrete Semiconductor Products / Transistors - FETs, MOSFETs - Single
Datasheet	IXFx4N85X
Standard Package	50
Manufacturer	IXYS
Series	HiPerFET™
Packaging	Tube
Part Status	Active
FET Type	N-Channel
Technology	MOSFET (Metal Oxide)
Drain to Source Voltage (Vdss)	850V
Current - Continuous Drain (Id) @ 25°C	3.5A (Tc)
Drive Voltage (Max Rds On, Min Rds On)	10V
Rds On (Max) @ Id, Vgs	2.5Ohm @ 2A, 10V
Vgs(th) (Max) @ Id	5.5V @ 250µA
Gate Charge (Qg) (Max) @ Vgs	7nC @ 10V
Vgs (Max)	±30V
Input Capacitance (Ciss) (Max) @ Vds	247pF @ 25V
FET Feature	-
Power Dissipation (Max)	150W (Tc)
Operating Temperature	-55°C ~ 150°C (TJ)
Mounting Type	Through Hole
Supplier Device Package	TO-220AB (IXFP)
Package / Case	TO-220-3
