Discrete Semiconductor Products / Transistors - FETs, MOSFETs - Single

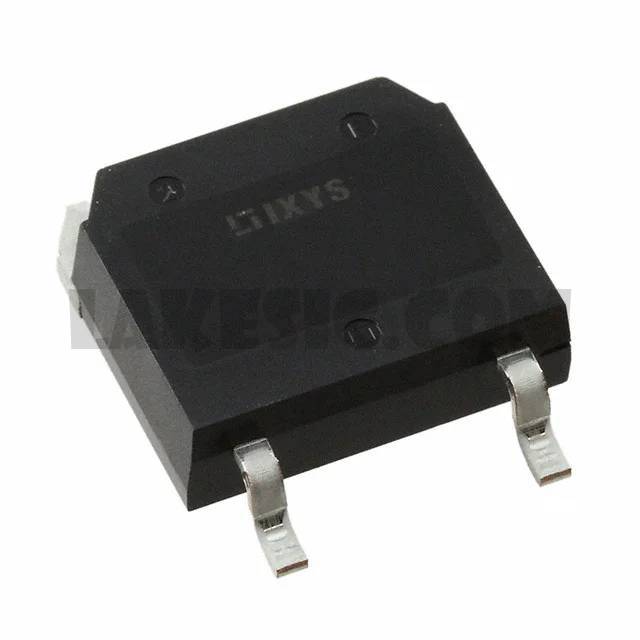

Datasheet IXFH120N30X3, IXFT120N30X3HV
Standard Package 30
Manufacturer IXYS
Series HiPerFET™
Packaging Tube
Part Status Active
FET Type N-Channel
Technology MOSFET (Metal Oxide)
Drain to Source Voltage (Vdss) 300V
Current - Continuous Drain (Id) @ 25°C 120A (Tc)
Drive Voltage (Max Rds On, Min Rds On) 10V
Rds On (Max) @ Id, Vgs 11mOhm @ 60A, 10V
Vgs(th) (Max) @ Id 4.5V @ 4mA
Gate Charge (Qg) (Max) @ Vgs 170nC @ 10V
Vgs (Max) ±20V
Input Capacitance (Ciss) (Max) @ Vds 10.5nF @ 25V
FET Feature -
Power Dissipation (Max) 735W (Tc)
Operating Temperature -55°C ~ 150°C (TJ)
Mounting Type Surface Mount
Supplier Device Package TO-268HV
Package / Case TO-268-3, D³Pak (2 Leads + Tab), TO-268AA
