Categories	Discrete Semiconductor Products / Transistors - IGBTs - Single
Datasheet	IXG(H,T)32N170
Standard Package	400
Manufacturer	IXYS
Series	-
Packaging	Tape & Reel (TR)
Part Status	Active
IGBT Type	NPT
Voltage - Collector Emitter Breakdown (Max)	1700V
Current - Collector (Ic) (Max)	75A
Current - Collector Pulsed (Icm)	200A
Vce(on) (Max) @ Vge, Ic	3.3V @ 15V, 32A
Power - Max	350W
Switching Energy	11mJ (off)
Input Type	Standard
Gate Charge	155nC
Td (on/off) @ 25°C	45ns/270ns
Test Condition	1020V, 32A, 2.7Ohm, 15V
Operating Temperature	-55°C ~ 150°C (TJ)
Mounting Type	Surface Mount

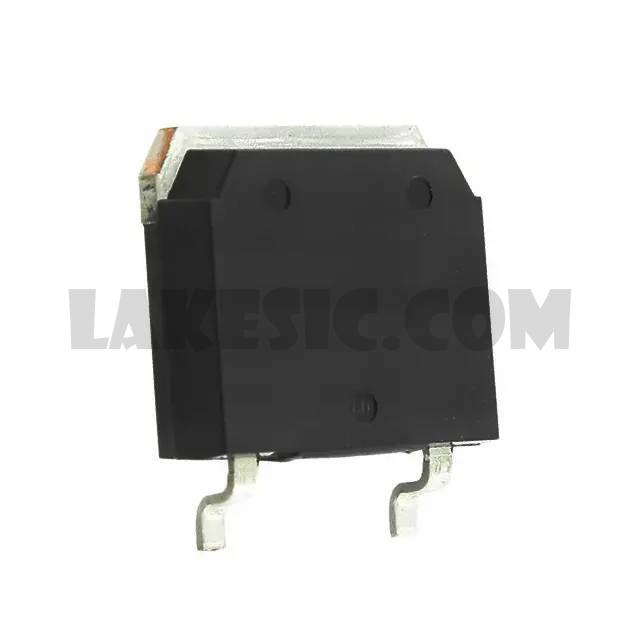

Package / Case	TO-268-3, D³Pak (2 Leads + Tab), TO-268AA
Supplier Device Package	TO-268
Base Part Number	IXG*32N170
