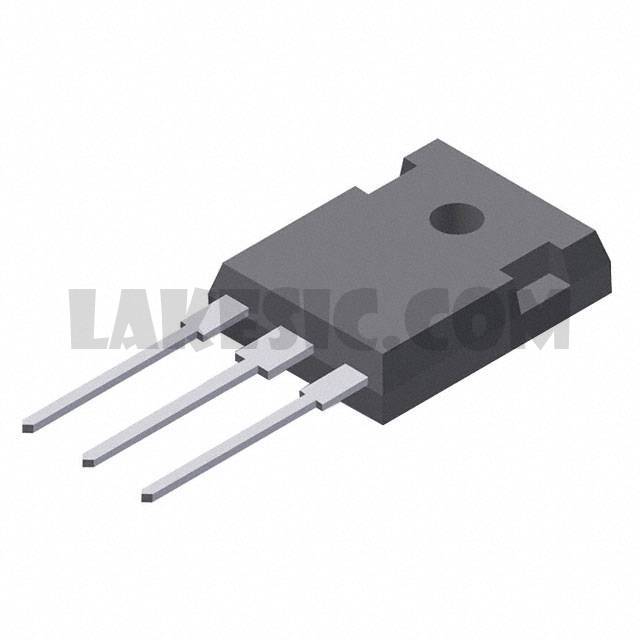

IXTX400N15X4

IXTX400N15X4

Part NumberIXTX400N15X4

ManufacturerIXYS

DescriptionMOSFET N-CH 150V 400A PLUS247

DatasheetIXT9K,X)400N15X4

Package / CaseTO-247-3

Unit PriceRequest a Quote

Lead TimeTo be Confirmed

Detailed DescriptionN-Channel 150V 400A (Tc) 1500W (Tc) Through Hole PLUS247™

To learn about the specification of IXTX400N15X4, please search the datasheet by clicking the link above. If you couldn't find the correct datasheet, please refer to the manufacturer's official datasheet.
To process your RFQ, please add IXTX400N15X4 with quantity into BOM. Icapacitors.com does NOT require any registration to request a quote of IXTX400N15X4.
We are offering IXTX400N15X4 for competitive price in the global market, please send us a quota request for pricing. Thank you!

Payment Methods
Delivery Services

IXTX400N15X4 - Product Attributes

Categories	Discrete Semiconductor Products / Transistors - FETs, MOSFETs - Single
Datasheet	IXT9K,X)400N15X4
Standard Package	30
Manufacturer	IXYS
Series	-
Part Status	Active
FET Type	N-Channel
Technology	MOSFET (Metal Oxide)
Drain to Source Voltage (Vdss)	150V
Current - Continuous Drain (Id) @ 25°C	400A (Tc)
Drive Voltage (Max Rds On, Min Rds On)	10V
Rds On (Max) @ Id, Vgs	3.1mOhm @ 100A, 10V
Vgs(th) (Max) @ Id	4.5V @ 1mA
Gate Charge (Qg) (Max) @ Vgs	430nC @ 10V
Vgs (Max)	±20V
Input Capacitance (Ciss) (Max) @ Vds	14500pF @ 25V
FET Feature	-
Power Dissipation (Max)	1500W (Tc)
Operating Temperature	-55°C ~ 175°C (TJ)
Mounting Type	Through Hole
Supplier Device Package	PLUS247™
Package / Case	TO-247-3
