IXYH24N170C
IXYH24N170C

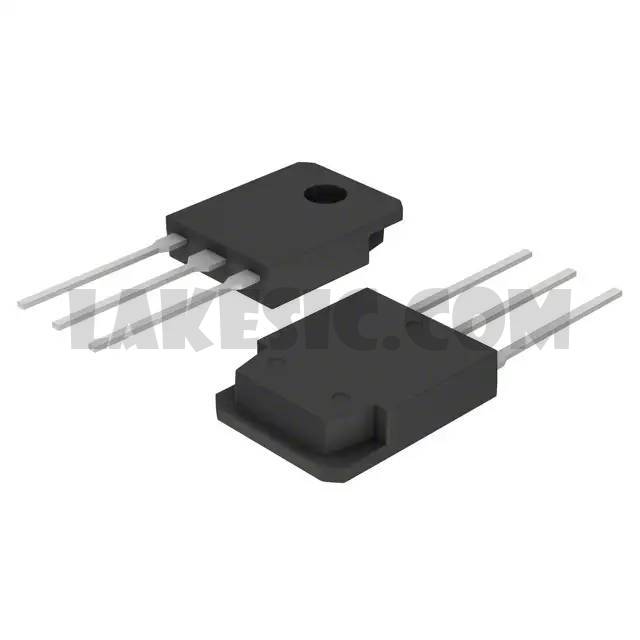

Part Number IXYH24N170C Manufacturer IXYS Description IGBT 1.7KV 58A TO247-3 Package / Case TO-247-3Unit Price Request a QuoteLead Time To be ConfirmedDetailed Description IGBT 1700V 58A 500W Through Hole TO-247-3
To learn about the specification of IXYH24N170C, please search the datasheet by clicking the link above. If you couldn't find the correct datasheet, please refer to the manufacturer's official datasheet.
To process your RFQ, please add IXYH24N170C with quantity into BOM. Icapacitors.com does NOT require any registration to request a quote of IXYH24N170C.
We are offering IXYH24N170C for competitive price in the global market, please send us a quota request for pricing. Thank you!
Payment Methods
Delivery Services
IXYH24N170C - Product Attributes
Categories
Discrete Semiconductor Products / Transistors - IGBTs - Single
Datasheet IXYH24N170C Standard Package 30 Manufacturer IXYS Series XPT™ Packaging Tube Part Status Active IGBT Type - Voltage - Collector Emitter Breakdown (Max) 1700V Current - Collector (Ic) (Max) 58A Current - Collector Pulsed (Icm) 145A Vce(on) (Max) @ Vge, Ic 3.8V @ 15V, 20A Power - Max 500W Switching Energy 4.9mJ (on), 1.95mJ (off) Input Type Standard Gate Charge 96nC Td (on/off) @ 25°C 12ns/160ns Test Condition 960V, 30A, 15Ohm, 15V Reverse Recovery Time (trr) 30ns Operating Temperature -55°C ~ 175°C (TJ) Mounting Type Through Hole Package / Case TO-247-3 Supplier Device Package TO-247-3
