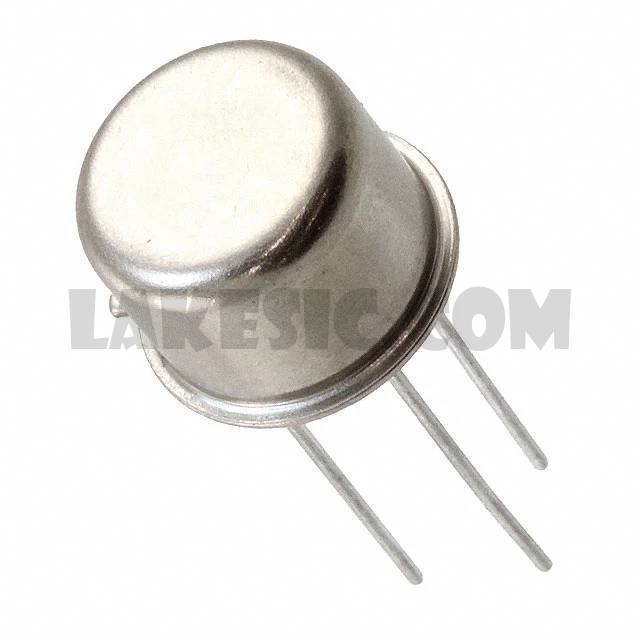

JANTX2N3637

JANTX2N3637

Part NumberJANTX2N3637

ManufacturerMicrosemi Corporation

DescriptionTRANS PNP 175V 1A TO-39

Datasheet2N3634-37(L,UB)

Package / CaseTO-205AA, TO-5-3 Metal Can

Unit PriceRequest a Quote

Lead TimeTo be Confirmed

Detailed DescriptionBipolar (BJT) Transistor PNP 175V 1A 1W Through Hole TO-5

To learn about the specification of JANTX2N3637, please search the datasheet by clicking the link above. If you couldn't find the correct datasheet, please refer to the manufacturer's official datasheet.
To process your RFQ, please add JANTX2N3637 with quantity into BOM. Icapacitors.com does NOT require any registration to request a quote of JANTX2N3637.
We are offering JANTX2N3637 for competitive price in the global market, please send us a quota request for pricing. Thank you!

Payment Methods
Delivery Services

JANTX2N3637 - Product Attributes

Categories	Discrete Semiconductor Products / Transistors - Bipolar (BJT) - Single
Datasheet	2N3634-37(L,UB)
Standard Package	1
Manufacturer	Microsemi Corporation
Series	Military, MIL-PRF-19500/357
Packaging	Bulk
Part Status	Active
Transistor Type	PNP
Current - Collector (Ic) (Max)	1A
Voltage - Collector Emitter Breakdown (Max)	175V
Vce Saturation (Max) @ Ib, Ic	600mV @ 5mA, 50mA
Current - Collector Cutoff (Max)	10µA
DC Current Gain (hFE) (Min) @ Ic, Vce	100 @ 50mA, 10V
Power - Max	1W
Frequency - Transition	-
Operating Temperature	-65°C ~ 200°C (TJ)
Mounting Type	Through Hole
Package / Case	TO-205AA, TO-5-3 Metal Can
Supplier Device Package	TO-5
