Categories	Discrete Semiconductor Products / Thyristors - SCRs - Modules
Datasheet	L Series
Standard Package	10
Manufacturer	Sensata-Crydom
Series	-
Packaging	Bulk
Part Status	Active

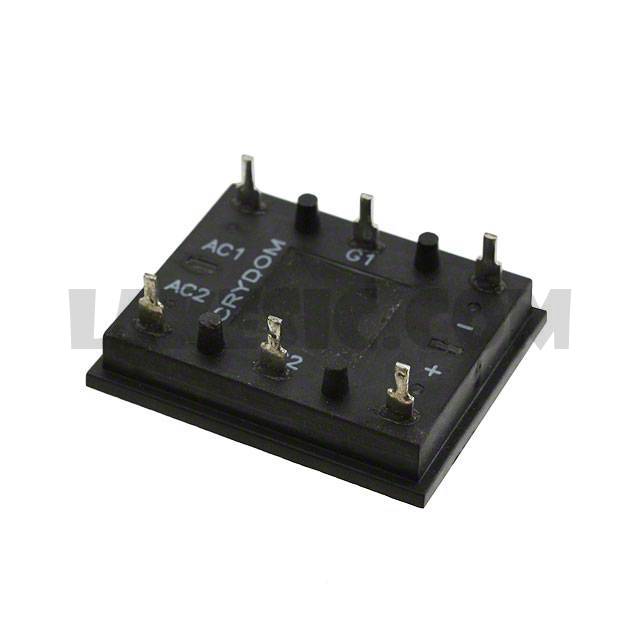

Structure	Bridge, Single Phase - SCRs/Diodes (Layout 2)
Number of SCRs, Diodes	2 SCRs, 2 Diodes
Voltage - Off State	600V
Voltage - Gate Trigger (Vgt) (Max)	3V
Current - Gate Trigger (Igt) (Max)	100mA
Current - Non Rep. Surge 50, 60Hz (Itsm)	300A @ 60Hz
Operating Temperature	-40°C ~ 125°C (TJ)
Mounting Type	Through Hole
Package / Case	Module
