Categories	Crystals, Oscillators, Resonators / Crystals
Datasheet	LFXTAL050518Reel
Standard Package	1
Manufacturer	IQD Frequency Products

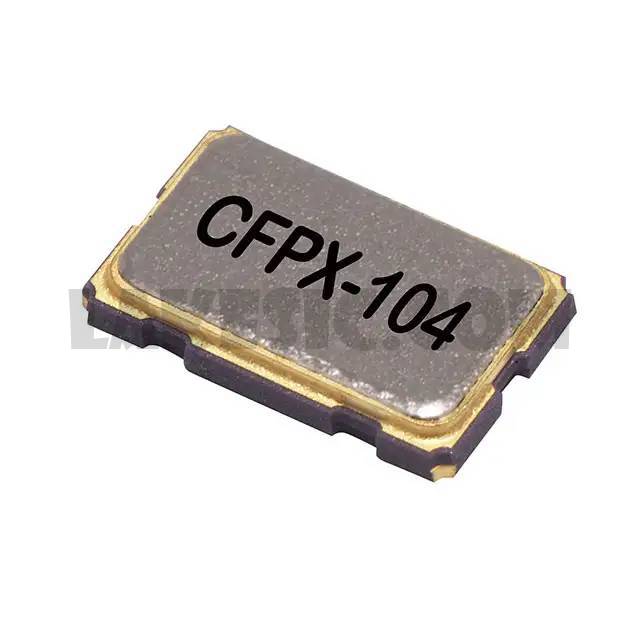

Series	CFPX-104
Packaging	Cut Tape (CT)
Part Status	Active
Type	MHz Crystal
Frequency	12MHz
Frequency Stability	±30ppm
Frequency Tolerance	±30ppm
Load Capacitance	12pF
ESR (Equivalent Series Resistance)	90 Ohms
Operating Mode	Fundamental
Operating Temperature	-40°C ~ 85°C
Ratings	-
Mounting Type	Surface Mount
Package / Case	4-SMD, No Lead
Size / Dimension	0.197" L x 0.126" W (5.00mm x 3.20mm)
Height - Seated (Max)	0.039" (1.00mm)

LFXTAL059523BULK	IQD Frequency Products, 12.288MHz ±20ppm Crystal 18pF 70 Ohms 4-SMD, No Lead, CFPX-104	View
LFXTAL059531REEL	IQD Frequency Products, 24.576MHz ±20ppm Crystal 18pF 40 Ohms 4-SMD, No Lead, CFPX-104	View
LFXTAL033265REEL	IQD Frequency Products, 20MHz ±50ppm Crystal 18pF 40 Ohms 4-SMD, No Lead, CFPX-104	View
LFXTAL069277REEL	IQD Frequency Products, 8MHz ±20ppm Crystal 20pF 150 Ohms 4-SMD, No Lead, CFPX-104	View
LFXTAL059532REEL	IQD Frequency Products, 25MHz ±20ppm Crystal 18pF 40 Ohms 4-SMD, No Lead, CFPX-104	View
LFXTAL050518REEL	IQD Frequency Products, 12MHz ±30ppm Crystal 12pF 90 Ohms 4-SMD, No Lead, CFPX-104	View
LFXTAL059535BULK	IQD Frequency Products, 32MHz ±20ppm Crystal 18pF 30 Ohms 4-SMD, No Lead, CFPX-104	View
LFXTAL030820REEL	IQD Frequency Products, 30MHz ±50ppm Crystal 18pF 30 Ohms 4-SMD, No Lead, CFPX-104	View
LFXTAL065460REEL	IQD Frequency Products, 30MHz ±10ppm Crystal 10pF 30 Ohms 4-SMD, No Lead, CFPX-104	View
LFXTAL059532REEL	IQD Frequency Products, 25MHz ±20ppm Crystal 18pF 40 Ohms 4-SMD, No Lead, CFPX-104	View
LFXTAL033645BULK	IQD Frequency Products, 40MHz ±50ppm Crystal 18pF 100 Ohms 4-SMD, No Lead, CFPX-104	View
LFXTAL059535REEL	IQD Frequency Products, 32MHz ±20ppm Crystal 18pF 30 Ohms 4-SMD, No Lead, CFPX-104	View

LFXTAL050518REEL

Part NumberLFXTAL050518REEL
