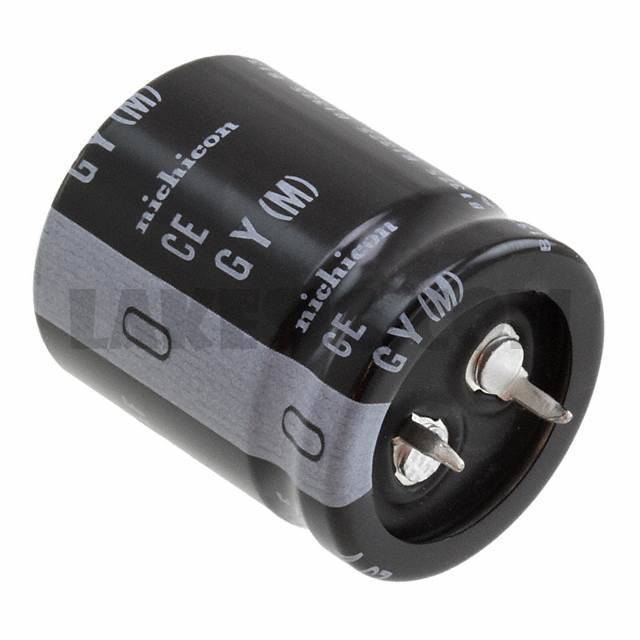

Categories	Capacitors / Aluminum Electrolytic Capacitors
Datasheet	LGY Series
Standard Package	250
Manufacturer	Nichicon
Series	LGY
Packaging	Bulk
Part Status	Active
Capacitance	5600µF
Tolerance	±20%
Voltage - Rated	35V
ESR (Equivalent Series Resistance)	-
Lifetime @ Temp.	5000 Hrs @ 105°C
Operating Temperature	-40°C ~ 105°C
Polarization	Polar
Ratings	-
Applications	General Purpose
Ripple Current @ Low Frequency	2A @ 120Hz
Ripple Current @ High Frequency	2.3A @ 50kHz
Lead Spacing	0.394" (10.00mm)
Size / Dimension	0.984" Dia (25.00mm)
Height - Seated (Max)	1.260" (32.00mm)
Surface Mount Land Size	-
Mounting Type	Through Hole
Package / Case	Radial, Can - Snap-In
