Categories	Discrete Semiconductor Products / Diodes - Bridge Rectifiers
Datasheet	LMB2S Thru LMB10S
Standard Package	5000
Manufacturer	Micro Commercial Co
Series	-
Packaging	Tape & Reel (TR)
Part Status	Active
Diode Type	Single Phase
Technology	Standard
Voltage - Peak Reverse (Max)	1kV
Current - Average Rectified (Io)	1A
Voltage - Forward (Vf) (Max) @ If	950mV @ 400mA
Current - Reverse Leakage @ Vr	5µA @ 1000V
Operating Temperature	-55°C ~ 150°C (TJ)
Mounting Type	Surface Mount
Package / Case	4-SMD, Gull Wing
Supplier Device Package	LMBS-1
Base Part Number	LMB10

MBS10 RCG	Taiwan Semiconductor Corporation, Bridge Rectifier Single Phase Standard 1kV Surface Mount MBS,	View
MB2S	ON Semiconductor, Bridge Rectifier Single Phase Standard 200V Surface Mount 4-SOIC,	View
SDB103-TP	Micro Commercial Co, Bridge Rectifier Single Phase Standard 200V Surface Mount SDB-1,	View
DF1502S-T	Diodes Incorporated, Bridge Rectifier Single Phase Standard 200V Surface Mount DF-S,	View
MB1S	ON Semiconductor, Bridge Rectifier Single Phase Standard 100V Surface Mount 4-SOIC,	View
TBS30M-TP	Micro Commercial Co, Bridge Rectifier Single Phase Standard 1kV Surface Mount 4-TBS,	View
CDBHD140L-G	Comchip Technology, Bridge Rectifier Single Phase Schottky 40V Surface Mount Mini-Dip (TO-269AA),	View
DF01S-T	Diodes Incorporated, Bridge Rectifier Single Phase Standard 100V Surface Mount DF-S,	View
DB106S-G	Comchip Technology, Bridge Rectifier Single Phase Standard 800V Surface Mount DBS,	View
CDBHD160L-G	Comchip Technology, Bridge Rectifier Single Phase Schottky 60V Surface Mount Mini-Dip (TO-269AA),	View
HDS10M-13	Diodes Incorporated, Bridge Rectifier Single Phase Standard 1kV Surface Mount HDS,	View
CDBHD1100L-G	Comchip Technology, Bridge Rectifier Single Phase Schottky 100V Surface Mount Mini-Dip (TO-269AA),	View

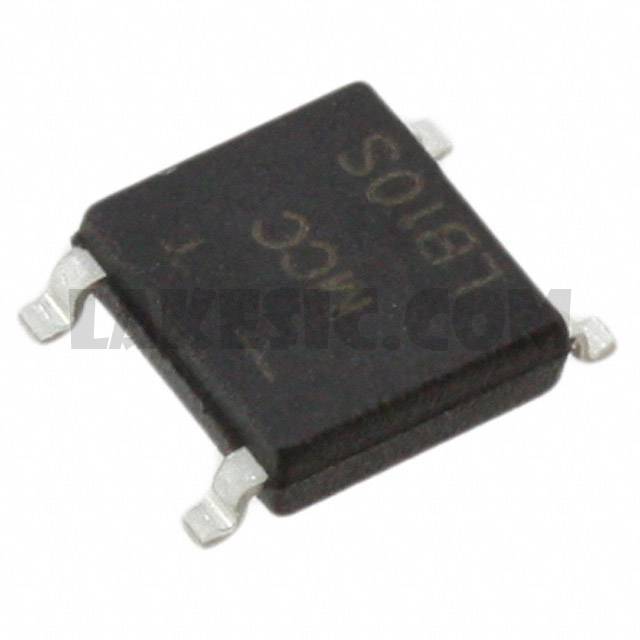

LMB10S-TP
