LND01K1-G

LND01K1-G

Part NumberLND01K1-G

ManufacturerMicrochip Technology

DescriptionMOSFET N-CH 9V 330MA SOT23-5

DatasheetLND01

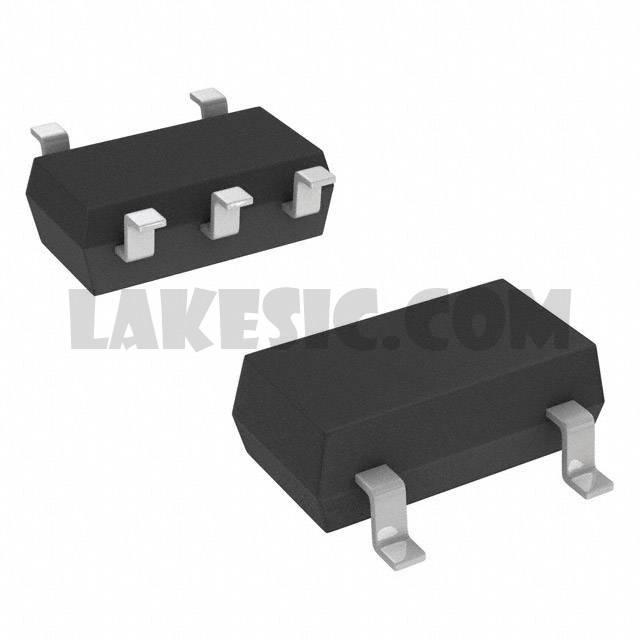

Package / CaseSC-74A, SOT-753

Unit PriceRequest a Quote

Lead TimeTo be Confirmed

Detailed DescriptionN-Channel 9V 330mA (Tj) 360mW (Ta) Surface Mount SOT-23-5

To learn about the specification of LND01K1-G, please search the datasheet by clicking the link above. If you couldn't find the correct datasheet, please refer to the manufacturer's official datasheet.
To process your RFQ, please add LND01K1-G with quantity into BOM. Icapacitors.com does NOT require any registration to request a quote of LND01K1-G.
We are offering LND01K1-G for competitive price in the global market, please send us a quota request for pricing. Thank you!

Payment Methods
Delivery Services

LND01K1-G - Product Attributes

Categories	Discrete Semiconductor Products / Transistors - FETs, MOSFETs - Single
Datasheet	LND01
Standard Package	1
Manufacturer	Microchip Technology
Series	-
Packaging	Cut Tape (CT)
Part Status	Active
FET Type	N-Channel
Technology	MOSFET (Metal Oxide)
Drain to Source Voltage (Vdss)	9V
Current - Continuous Drain (Id) @ 25°C	330mA (Tj)
Drive Voltage (Max Rds On, Min Rds On)	0V
Rds On (Max) @ Id, Vgs	1.4Ohm @ 100mA, 0V
Vgs(th) (Max) @ Id	-
Vgs (Max)	+0.6V, -12V
Input Capacitance (Ciss) (Max) @ Vds	46pF @ 5V
FET Feature	Depletion Mode
Power Dissipation (Max)	360mW (Ta)
Operating Temperature	-25°C ~ 125°C (TJ)
Mounting Type	Surface Mount
Supplier Device Package	SOT-23-5
Package / Case	SC-74A, SOT-753
