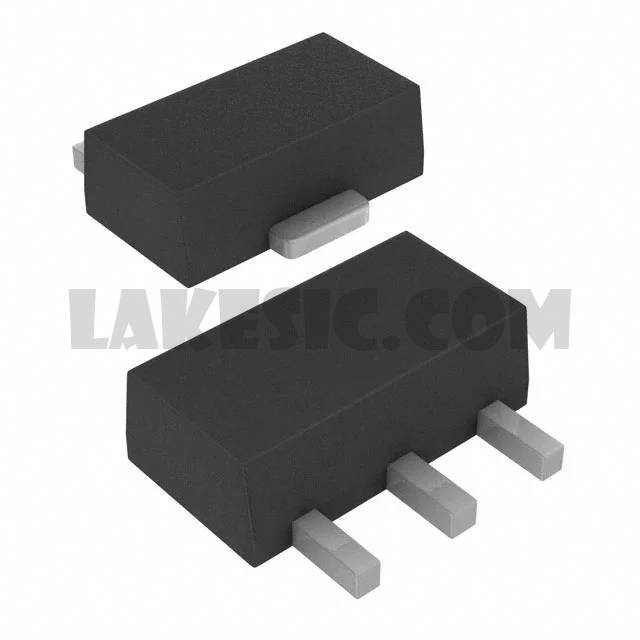

TN5335N8-G

TN5335N8-G

Part NumberTN5335N8-G

ManufacturerMicrochip Technology

DescriptionMOSFET N-CH 350V 0.23A SOT89-3

DatasheetTN5335

Package / CaseTO-243AA

Unit PriceRequest a Quote

Lead TimeTo be Confirmed

Detailed DescriptionN-Channel 350V 230mA (Tj) 1.6W (Ta) Surface Mount TO-243AA (SOT-89)

To learn about the specification of TN5335N8-G, please search the datasheet by clicking the link above. If you couldn't find the correct datasheet, please refer to the manufacturer's official datasheet.
To process your RFQ, please add TN5335N8-G with quantity into BOM. Icapacitors.com does NOT require any registration to request a quote of TN5335N8-G.
We are offering TN5335N8-G for competitive price in the global market, please send us a quota request for pricing. Thank you!

Payment Methods
Delivery Services

TN5335N8-G - Product Attributes

Categories	Discrete Semiconductor Products / Transistors - FETs, MOSFETs - Single
Datasheet	TN5335
Standard Package	1
Manufacturer	Microchip Technology
Series	-
Packaging	Cut Tape (CT)
Part Status	Active
FET Type	N-Channel
Technology	MOSFET (Metal Oxide)
Drain to Source Voltage (Vdss)	350V
Current - Continuous Drain (Id) @ 25°C	230mA (Tj)
Drive Voltage (Max Rds On, Min Rds On)	3V, 10V
Rds On (Max) @ Id, Vgs	15Ohm @ 200mA, 10V
Vgs(th) (Max) @ Id	2V @ 1mA
Vgs (Max)	±20V
Input Capacitance (Ciss) (Max) @ Vds	110pF @ 25V
FET Feature	-
Power Dissipation (Max)	1.6W (Ta)
Operating Temperature	-55°C ~ 150°C (TJ)
Mounting Type	Surface Mount
Supplier Device Package	TO-243AA (SOT-89)
Package / Case	TO-243AA
