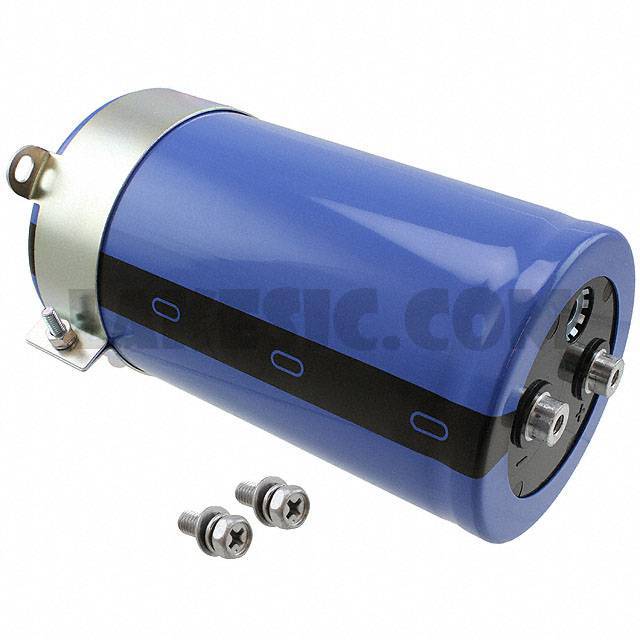

LNR2A683MSE

LNR2A683MSE

Part NumberLNR2A683MSE

ManufacturerNichicon

DescriptionCAP ALUM 68000UF 20% 100V SCREW

DatasheetLNR Series

Package / CaseRadial, Can - Screw Terminals

Unit PriceRequest a Quote

Lead TimeTo be Confirmed

Detailed Description68000µF 100V Aluminum Electrolytic Capacitors Radial, Can - Screw Terminals 5000 Hrs @ 85°C

To learn about the specification of LNR2A683MSE, please search the datasheet by clicking the link above. If you couldn't find the correct datasheet, please refer to the manufacturer's official datasheet.
To process your RFQ, please add LNR2A683MSE with quantity into BOM. Icapacitors.com does NOT require any registration to request a quote of LNR2A683MSE.
We are offering LNR2A683MSE for competitive price in the global market, please send us a quota request for pricing. Thank you!

Payment Methods
Delivery Services

LNR2A683MSE - Product Attributes

Categories	Capacitors / Aluminum Electrolytic Capacitors
Datasheet	LNR Series
Standard Package	5
Manufacturer	Nichicon
Series	LNR
Packaging	Bulk
Part Status	Active
Capacitance	68000µF
Tolerance	±20%
Voltage - Rated	100V
ESR (Equivalent Series Resistance)	-
Lifetime @ Temp.	5000 Hrs @ 85°C
Operating Temperature	-40°C ~ 85°C
Polarization	Polar
Ratings	-
Applications	General Purpose
Ripple Current @ Low Frequency	18.2A @ 120Hz
Ripple Current @ High Frequency	20.93A @ 10kHz
Lead Spacing	1.252" (31.80mm)
Size / Dimension	3.000" Dia (76.20mm)
Height - Seated (Max)	5.630" (143.00mm)
Surface Mount Land Size	-
Mounting Type	Chassis Mount
Package / Case	Radial, Can - Screw Terminals
